Introduction

Thank you for your purchase of this KAVAN Europe s.r.o. product. You should enjoy many hours of fun and excitement from this advanced R/C model. Please read all instructions and familiarize yourself with the systems and controls of this model before running. If you have any technical questions please contact our product specialists on info@kavanrc.com.

Have fun and enjoy the exciting world of radio control cars!

Safety precautions

Please read all instructions thoroughly before operation including the radio and ESC manual.

  1. This product is not a toy. It is a high performance model product. It is im portant to familiarize yourself with the model, its manual, and its construc tion before assembly or operation.
  2. Always keep this instruction manual ready at hand for your assembling and operating reference, even after completing the assembly.
  3. Do not operate model products in rain, on public roads, near crowds, near airport, or near areas with restricted radio operation.
  4. This product, its parts, and its construction tools can cause damage to yours or others health and/or property if not used properly. Always exer cise extreme caution when assembling and/or operating this product. Do not touch any part of model that rotates.
  5. Always check your radio for proper operation before operating a model.
  6. Use an adequate charger for the batteries and follow the instruction co rrectly.
  7. Right after use, do not touch motor, ESC and battery on the model because they may be hot!
  8. Do not stall the motor. The ESC may fail if power is applied to the motor when car cannot move freely.
  9. By the act of assembling or operating this product, the user accepts all resulting liability. If the buyer is not prepared to accept this liability, then he/she should return this product in new, unassembled, and unused con dition to the place of purchase.
Warning: To avoid a possible fire hazard or ruining your battery, ALWAYS unplug the battery after use. Do NOT leave your vehicle unattended with the battery plugged in.

Specifications

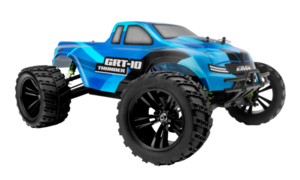

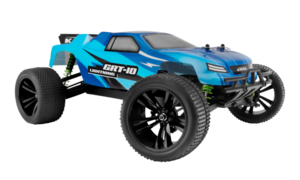

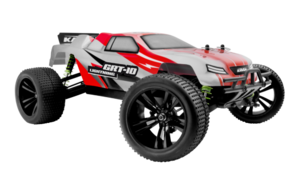

Lightning Truggy Thunder Truck
Length (mm) 412 425
Width (mm) 312 316
Height (mm) 162 190
Wheelbase (mm) 296 296
Drive System 4WD 4WD
Wheel Diameter (mm) 104 110
Wheel Width (mm) 52 56
Motor RC 550 RC 550
ESC GRT-10 Brushed 40A GRT-10 Brushed 40A
Battery *7.2 V 2000–5000 mAh NiMH *7.2 V 2000–5000 mAh NiMH
