KAVAN Smart PRO MPSW15 Magnetic switch - Instruction manual
Introduction
Congratulations on purchasing the KAVAN Smart PRO MPSW15 Magnetic switch, a high-performance digital switch of the "REMOVE BEFORE FLIGHT" type. It operates using magnetic activation. Inserting the supplied magnetic activation pin into the slot disconnects the power (opens the circuit). Removing the pin switches the device on and activates the connected circuit. Illuminated LED indicators indicate the power-on state.
This system offers a safe and reliable solution for switching receivers, ignition systems, and other onboard electronics without the need for electrical contact. The switch provides reliable and secure control via a magnet and supports various types of loads, including inductive. It is contactless, so it has no wear due to switching cycles or current flow.
Features
- Operating state LED indicator
- Reliable and secure control via a magnet
- No wear and tear
- Fast and easy to use
Technical specifications
| Specification | MPSW15 |
|---|---|

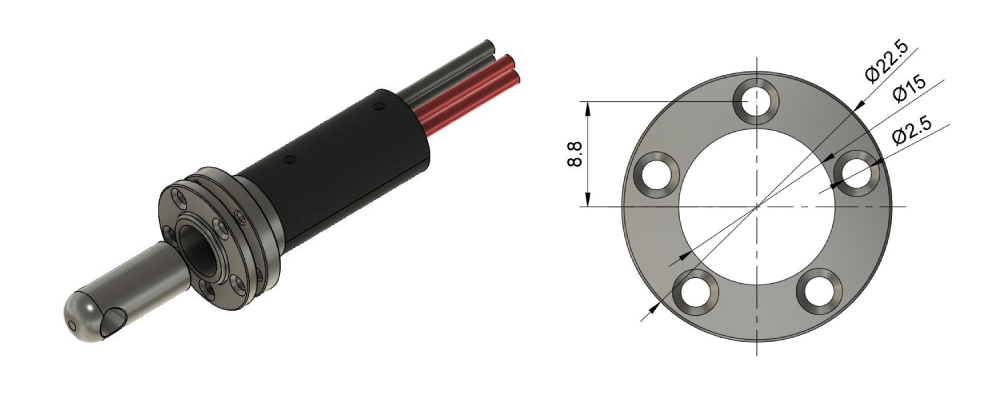

| Dimensions | (Ø22.5/Ø15)×42 mm |
| Weight (incl. cables) | 16 g |
| Cables | 4×1 mm² (17AWG) |
| Connectors | - |
| Continuous current | 15 A |
| Peak current (2s) | 25 A |
| Current when off | < 3 µA |
| Operating temperature | (-20)–85 °C |
| Switching voltage range | 5–17 V |
| Status LED | Yes |
Installation
Connect the device according to the markings on the product, where input and switched output are clearly indicated. Observe correct polarity:
Red wire = positive (+)
Black wire = negative (–)
A magnet is included with the switch.
Manufacturer
KAVAN Smart PRO MPSW15 Magnetic switch is made in Czechia by MAV Sense s.r.o.
E-mail: info@mavsense.com | Web: www.mavsense.com
Recycling and waste disposal note (European Union)
Electrical equipment marked with the crossed-out waste bin symbol must not be discarded in the domestic waste; it should be disposed of via the appropriate specialised disposal system. In the countries of the EU (European Union), electrical devices must not be discarded via the normal domestic waste system (WEEE - Waste of Electrical and Electronic Equipment, Directive 2012/19/EU). You can take your unwanted equipment to your nearest public collection point or recycling centre, where it will be disposed of in the proper manner at no charge to you. By disposing of your old equipment in a responsible manner, you make an important contribution to the safeguarding of the environment.
EU declaration of conformity (European Union)
Hereby, KAVAN Europe s.r.o. declares that the KAVAN Smart PRO MPSW15 Magnetic switch is in compliance with the essential requirements as laid down in the EU directive(s) concerning electromagnetic compatibility. The full text of the EU Declaration of Conformity is available at www.kavanrc.com/doc.
Guarantee
The KAVAN Europe s.r.o. products are covered by a guarantee that fulfils the currently valid legal requirements in your country. If you wish to make a claim under guarantee, please contact the retailer from whom you first purchased the equipment. The guarantee does not cover faults which were caused in the following ways: crashes, improper use, incorrect connection, reversed polarity, maintenance work carried out late, incorrectly or not at all, or by unauthorised personnel, or use of other than genuine KAVAN Europe s.r.o. accessories, modifications or repairs which were not carried out by KAVAN Europe s.r.o. or an authorised KAVAN Europe s.r.o., accidental or deliberate damage, defects caused by normal wear and tear, operation outside the Specification, or in conjunction with equipment made by other manufacturers. Please be sure to read the appropriate information sheets in the product documentation.
