KAVAN Smart PRO TW30 Power switch with telemetry - Instruction manual

Introduction

Congratulations on purchasing the KAVAN Smart PRO TW30 Power switch with telemetry. TW30 combines touch switch functionality and a telemetry sensor in a single device. It uses advanced technology to reach minimum size with an enhanced set of features.

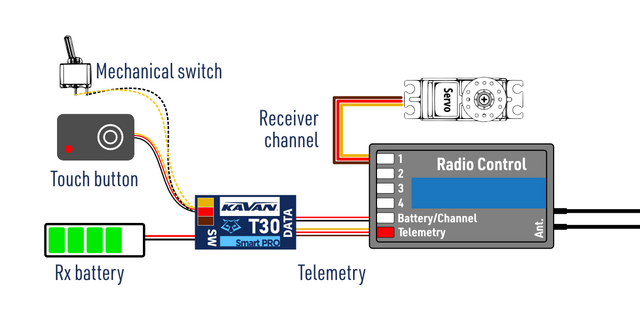

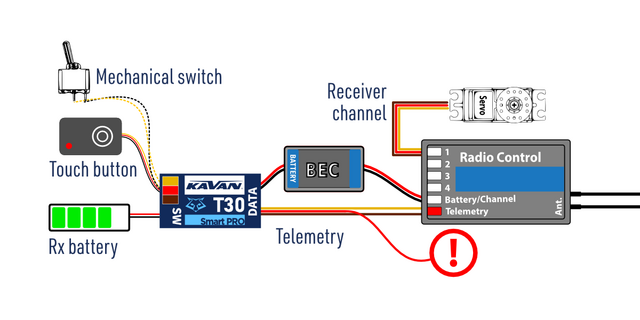

Power switch TW30 is designed to turn on/off the electronics in your model. If you use a dedicated receiver battery, the Voltario can be used to directly replace a mechanical switch. Specifically in thin glider fuselages or models equipped with a small BEC monitoring.

The device remembers its last operating state, and if the battery is accidentally disconnected, the TW30 will automatically boot up as soon as the battery is connected again.

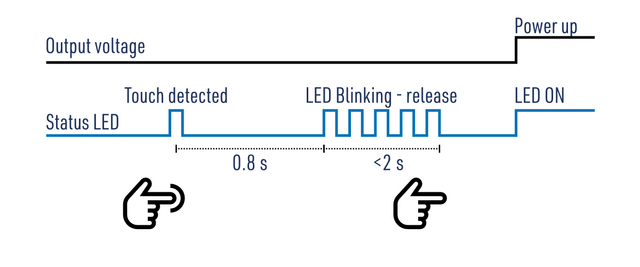

• Touch switch function.

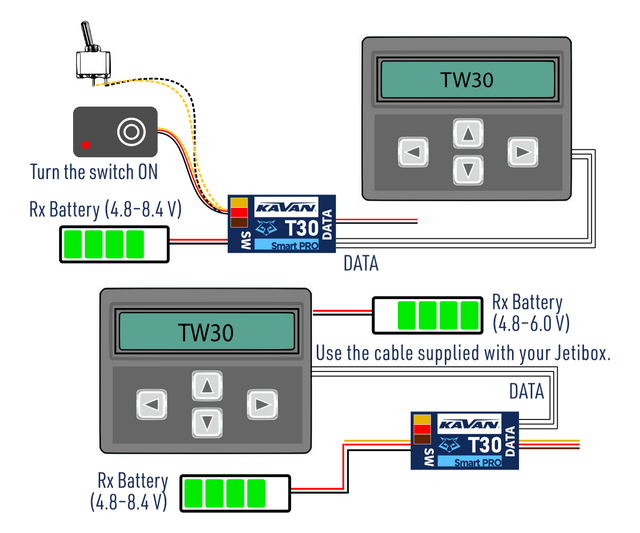

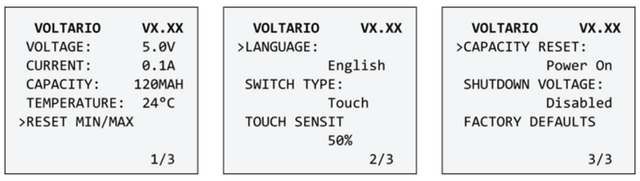

• Duplex EX, Multiplex MSB and Graupner Hott telemetry support (current, voltage, capacity).
• Optional low voltage shutdown.
• Remembers the last operating state.
