KAVAN Smart PRO USB-C interface - Instruction manual

Introduction

Congratulations on purchasing the KAVAN Smart PRO USB-C interface used to connect your USB-equipped Smart PRO devices to your PC. This allows you to save or analyse your data or update the firmware of your devices.

Features

• Dimensions: 33×12×6 mm
• Weight: 2 g
• USB connector: MINI USB Typ B (USB 2.0)
• Current: 25 mA
• Supply voltage: 5 V
• Output current: 130 mA
• Chip: Silicon Labs CP2102
• Transmission speeds: up to 1 Mbps
• Operating temperature: (-20)–85 °C

Installation

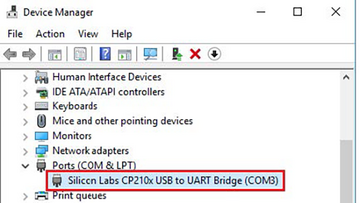

Connect the USB interface to your PC/laptop using a USBA to Mini B cable. The software drivers are usually installed automatically by the operating system and the interface appears in the Device Manager as a virtual COM port.

If the drivers are not installed automatically, please follow the link below and install them manually: https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers

Firmware update

Firmware updates for the battery switch are transferred from a PC via the USB interface.

The required programs and files are available at www.mavsense.com.

Install the MAV Manager software and the USB drivers on your computer. Check the system requirements.

1. Disconnect all devices attached to the battery switch.
2. Connect the USB interface to your PC, run MAV Manager and select the correct COM Port.

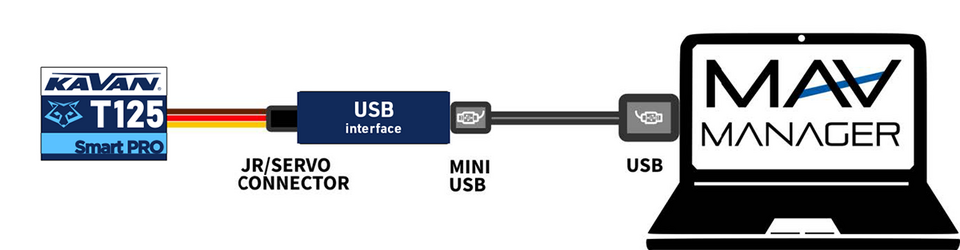

3. Connect the battery switch according to the picture below.
4. Apply external power to the battery switch via B1 or B2 battery inputs.
5. Select the appropriate *.BIN file and press the Update button.

Manufacturer

KAVAN Smart PRO USB-C interface is made in Czechia by MAV Sense s.r.o.

E-mail: info@mavsense.com | Web: www.mavsense.com
