KAVAN GRE-18 Crawler - Instruction manual

KAV06.GRE18O

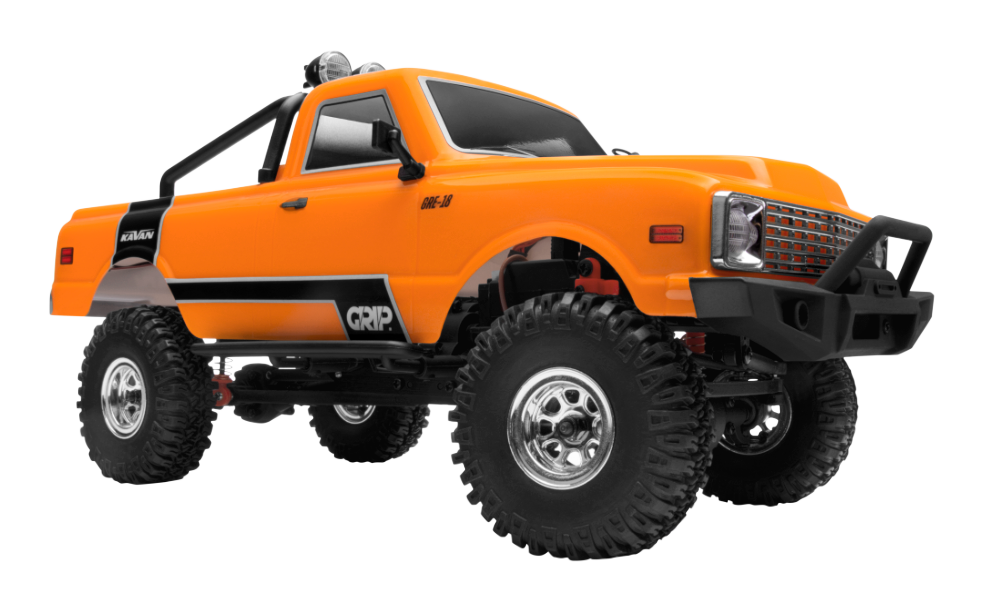

GRE-18 orange

KAV06.GRE18B

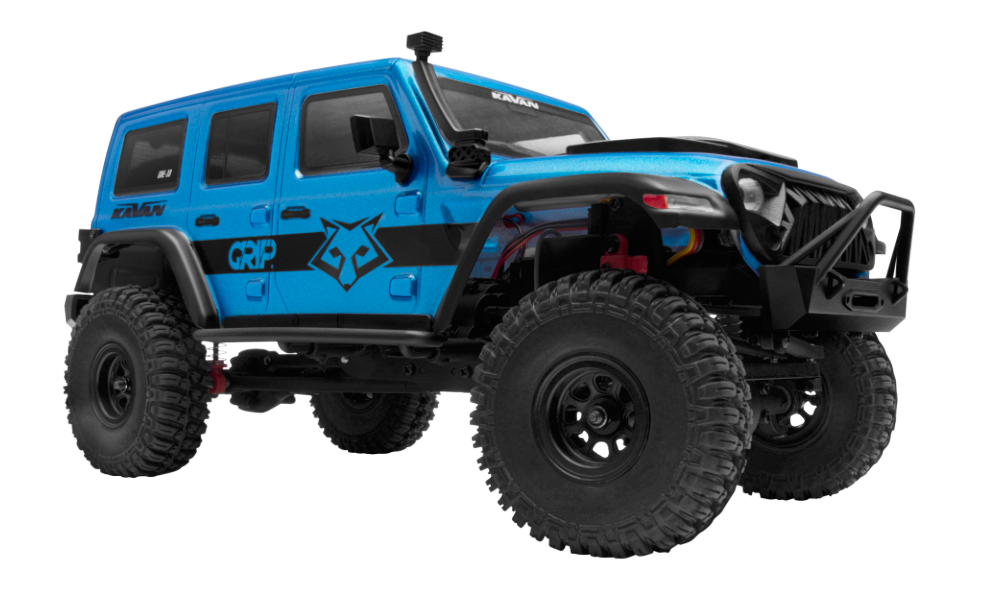

GRE-18 blue

Introduction

The KAVAN GRE-18 is a ready-to-run (RTR), four-wheel-drive crawler in 1:18 scale. This manual covers preparation, radio setup, operation, maintenance and spare parts for the orange and blue versions.

Technical specifications

Scale	1:18
Drive	4WD crawler
Power supply	Li-Po 7.4 V (2S)
Transmitter supply	4× AAA alkaline (1.5 V) or NiMH (1.2 V)
Modulation	FHSS
Frequency range	2.405–2.478 GHz
Transmitter RF power	<20 dBm
Battery charging temperature	0–45 °C

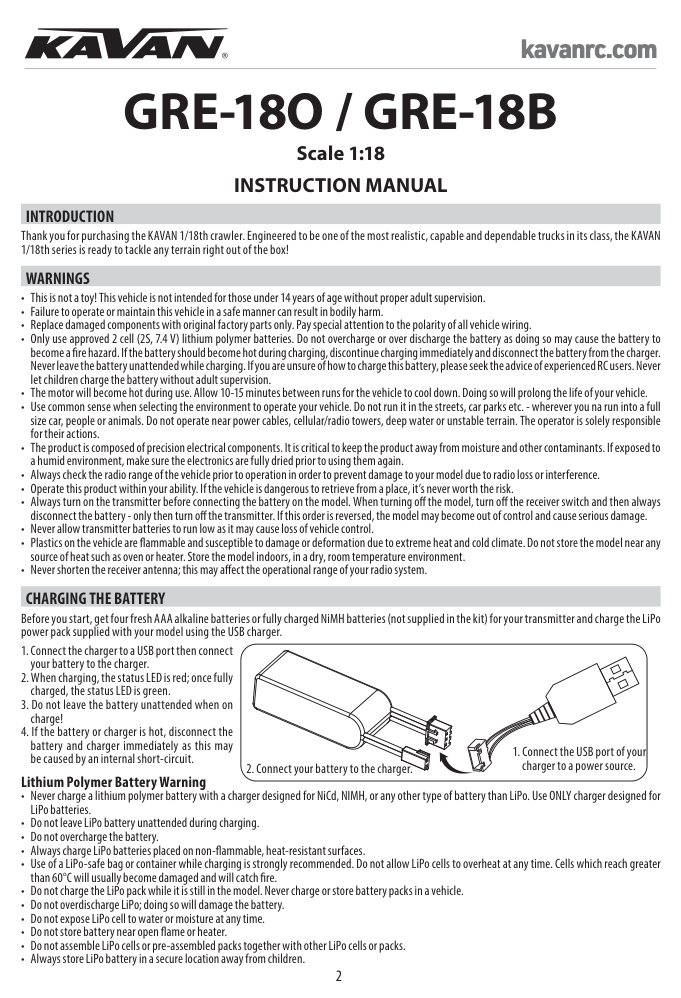

Warnings

• This is not a toy! Independent operation is intended for users older than 15 years. Younger users require proper adult supervision.
• Failure to operate or maintain this vehicle safely can result in bodily harm.
• Replace damaged components with original factory parts only. Pay special attention to the polarity of all vehicle wiring.
• Only use approved two-cell (2S, 7.4 V) lithium polymer batteries. Do not overcharge or overdischarge the battery as doing so may cause the battery to become a fire hazard. If the battery should become hot during charging, discontinue charging immediately and disconnect the battery from the charger. Never leave the battery unattended while charging. If you are unsure of how to charge this battery, please seek the advice of experienced RC users. Never let children charge the battery without adult supervision.
• The motor will become hot during use. Allow 10–15 minutes between runs for the vehicle to cool down. Doing so will prolong the life of your vehicle.
• Use common sense when selecting the environment to operate your vehicle. Do not run it in the streets, car parks or anywhere you can run into a full-size car, people or animals. Do not operate near power cables, cellular/radio towers, deep water or unstable terrain. The operator is solely responsible for their actions.
• The product is composed of precision electrical components. It is critical to keep the product away from moisture and other contaminants. If exposed to a humid environment, make sure the electronics are fully dried before using them again.
• Always check the radio range of the vehicle before operation to prevent damage to your model due to radio loss or interference.
• Operate this product to your ability. If the vehicle is dangerous to retrieve from a place, do not risk injury to retrieve it.
• Always turn on the transmitter before connecting the battery to the model. When turning off the model, turn off the receiver switch and then always disconnect the battery; only then turn off the transmitter. If this order is reversed, the model may become out of control and cause serious damage.
• Never allow transmitter batteries to run low as it may cause loss of vehicle control.
• Plastics on the vehicle are flammable and susceptible to damage or deformation due to extreme heat and cold climates. Do not store the model near any source of heat such as an oven or heater. Store the model indoors, in a dry, room-temperature environment.
• Never shorten the receiver antenna; this may affect the operational range of your radio system.

Main section

Charging the battery

Before you start, get four fresh AAA alkaline batteries or fully charged NiMH batteries (not supplied in the kit) for your transmitter and charge the LiPo power pack supplied with your model using the USB charger.

1. Connect the charger to a USB port then connect your battery to the charger.
2. When charging, the status LED is red. Once fully charged, the status LED turns green.
3. Do not leave the battery unattended when charging!
4. If the battery or charger is hot, disconnect the battery and charger immediately as this may be caused by an internal short-circuit.

Lithium polymer battery safety

• Never charge a lithium polymer battery with a charger designed for NiCd, NiMH, or any other type of battery than LiPo. Use ONLY a charger designed for LiPo batteries.
• Do not leave the LiPo battery unattended during charging.
• Do not overcharge the battery.
• Always charge LiPo batteries placed on non-flammable, heat-resistant surfaces.
• Use of a LiPo-safe bag or container while charging is strongly recommended. Do not allow LiPo cells to overheat at any time. Cells heated above 60 °C are likely to be damaged and present a fire risk.
• Do not charge the LiPo pack while it is still in the model. Never charge or store battery packs in a vehicle.
• Do not over-discharge LiPo; doing so will damage the battery.
• Do not expose LiPo cells to water or moisture at any time.
• Do not store battery near open flame or heater.
• Do not assemble LiPo cells or pre-assembled packs together with other LiPo cells or packs.
• Always store LiPo batteries in a secure location away from children.
• Always remove the LiPo battery if the model is involved in any kind of crash.
• Carefully inspect the battery and connectors for even the smallest damage.
• Do not allow the electrolyte to get into the eyes or on the skin. Wash affected areas immediately if they come into contact with electrolytes. Do not alter or modify the connectors or wires of a LiPo battery pack.
• Always inspect the condition of the battery before charging and operating.
• Do not short-circuit the LiPo battery.
• Avoid direct contact with a leaky/damaged battery.
• Do not charge the battery out of the recommended temperature range (0–45 °C).

Attention

Cells may become hot after usage. Allow the pack to cool to room temperature before recharging.

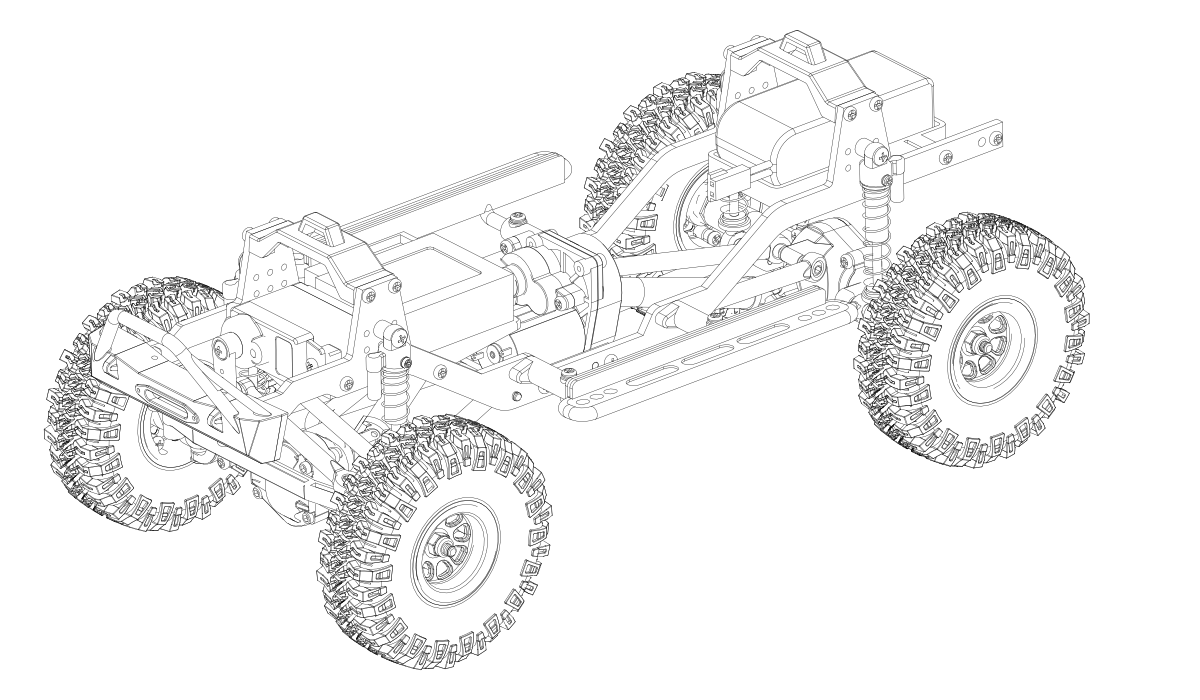

Remove and replace the drive battery

1. Switch off the vehicle.

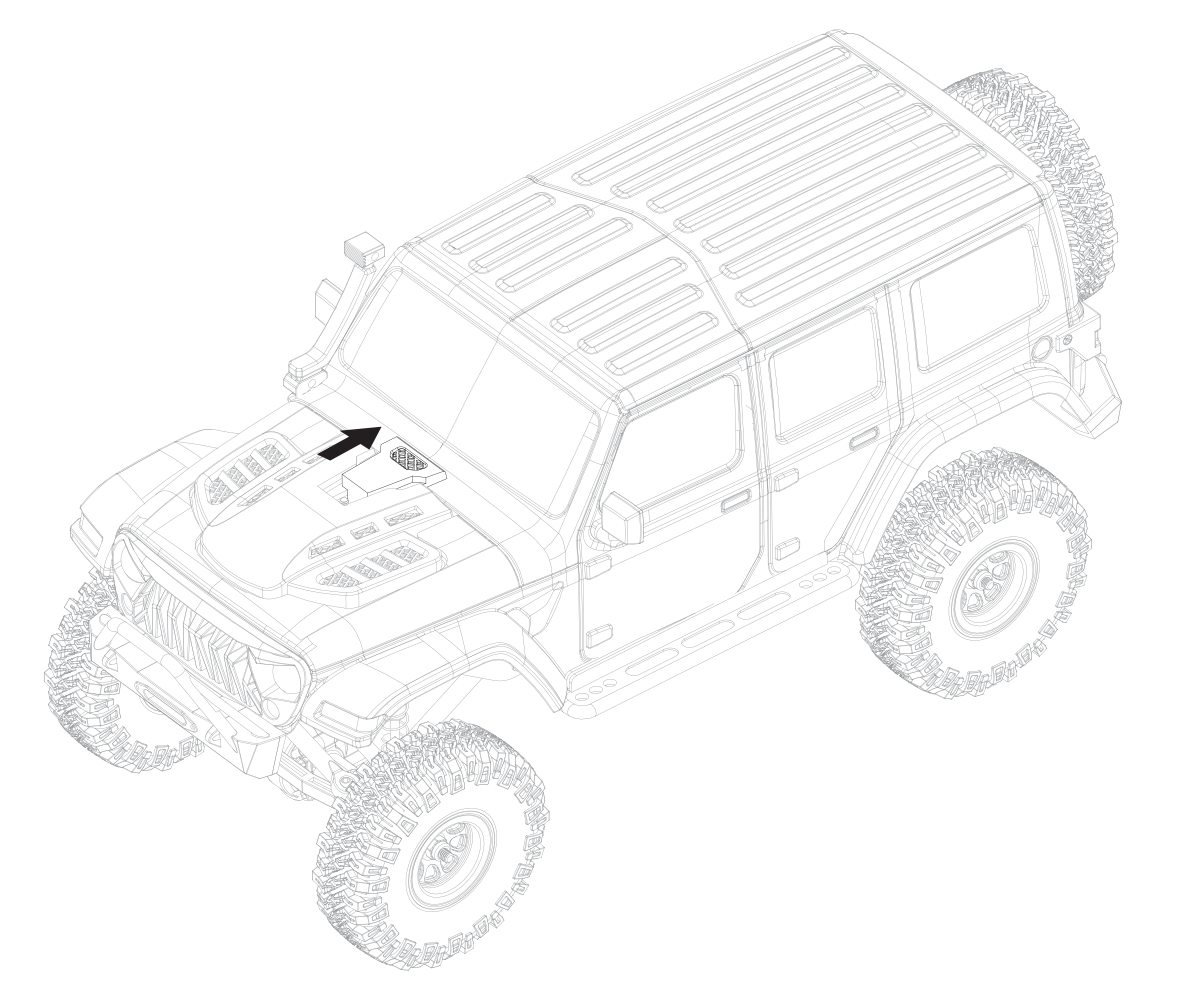

2. Press the body release to unlock it. (Fig. 1)

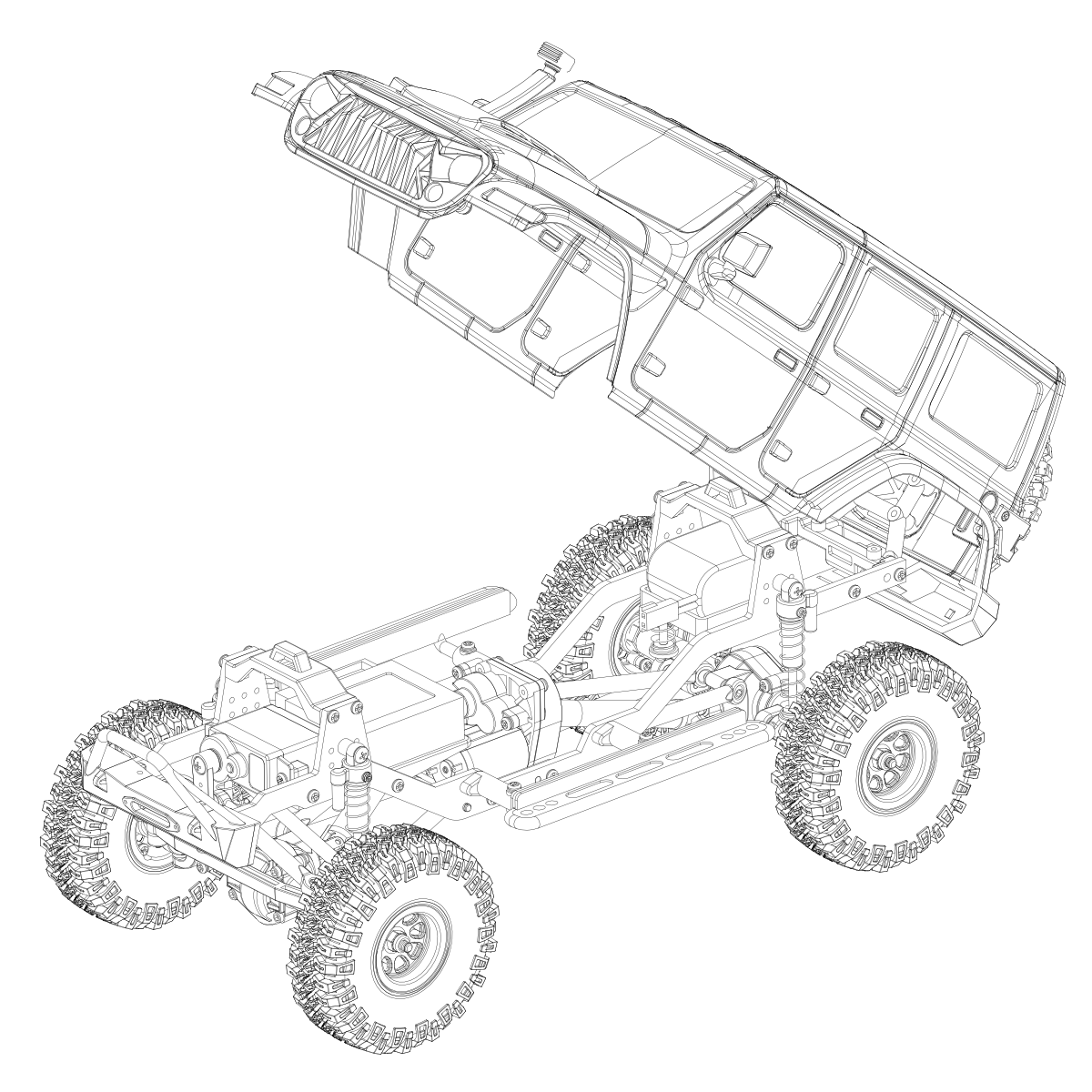

3. Raise the body to access the battery compartment. (Fig. 2)
4. Disconnect the battery.
5. Release the battery retainer and remove the pack. Install the charged pack securely, route the leads clear of moving parts, then close and lock the body. (Fig. 3)

Attention

Never charge the battery inside the model.

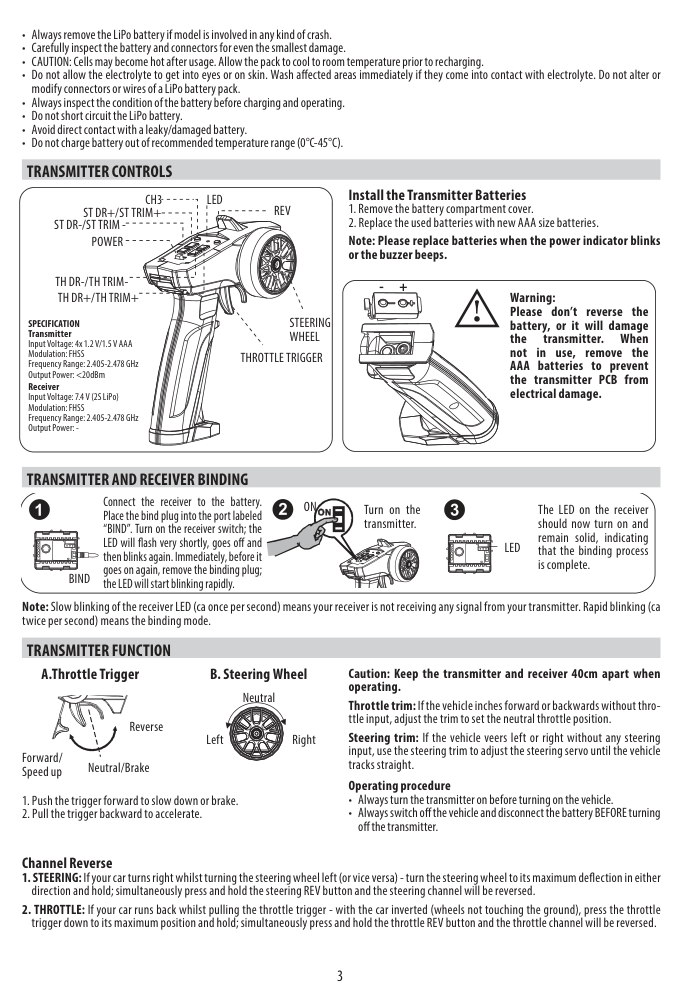

Transmitter controls

Install the transmitter batteries

1. Remove the battery compartment cover.
2. Fit four fresh AAA alkaline batteries or fully charged AAA NiMH batteries, observing the marked polarity, and replace the cover.

Note

Please replace batteries when the power indicator blinks or the buzzer beeps.

Specification

Transmitter

• Supply voltage: 4× AAA, 1.2 V NiMH or 1.5 V alkaline
• Modulation: FHSS
• Frequency range: 2.405–2.478 GHz
• RF power: <20 dBm

Receiver

• Supply voltage: 7.4 V (2S LiPo)
• Modulation: FHSS
• Frequency range: 2.405–2.478 GHz
• RF power: not specified

Attention

Observe the correct battery polarity to prevent transmitter damage. Remove the AAA batteries before storing the transmitter for a prolonged period.

Transmitter and receiver binding

See (Fig. 5). Keep the vehicle supported with its wheels clear of the ground. The receiver-first order below applies only to binding; for normal driving, switch the transmitter on first.

1. Connect the receiver to the battery. Place the bind plug into the port labelled „BIND“. Turn on the receiver switch. The LED will flash very shortly, go off and then blink again. Immediately before it goes on again, remove the binding plug. The LED will start blinking rapidly.
2. Turn on the transmitter.
3. The LED on the receiver should now turn on and remain solid, indicating that the binding process is complete.

Note

Slow receiver LED flashing (about once per second) indicates no transmitter signal. Rapid flashing (about twice per second) indicates binding mode.

Transmitter function

1. Push the trigger forward to slow decelerate/brake or to reverse.
2. Pull the trigger towards you to accelerate.

The drawing identifies neutral/brake at the centre and reverse on the forward-push side of the trigger. Check the response with the wheels clear of the ground before driving. (Fig. 5)

Attention

Keep the transmitter and receiver at least 40 cm apart when operating.

Throttle trim: If the vehicle moves forwards or backwards with the trigger at neutral, press TH TRIM + or TH TRIM − until it stops.

Steering trim: If the vehicle turns with the steering wheel centred, press ST TRIM + or ST TRIM − until it travels straight.

Operating procedure

• Always turn the transmitter on before turning on the vehicle.
• Always switch off the vehicle and disconnect the battery BEFORE turning off the transmitter.

Channel reverse

1. Steering: if your car turns right while turning the steering wheel left (or vice versa); turn the steering wheel to its maximum deflection in either direction and hold; simultaneously press and hold the REV button and the steering channel will be reversed.
2. Throttle: if your car reverses when you pull the throttle trigger, support the car with its wheels clear of the ground, pull the throttle trigger fully towards you and hold it there; simultaneously press and hold the REV button and the throttle channel will be reversed.

Control rate

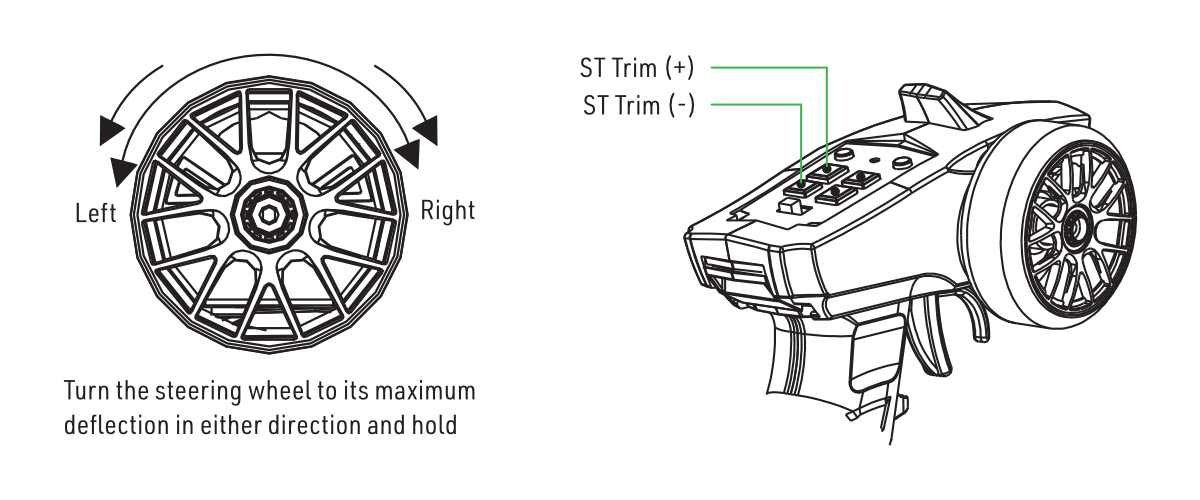

1. Steering: turn the steering wheel to its maximum deflection in either direction and hold; press the ST TRIM + or ST TRIM − buttons to increase or decrease the steering rate. If the steering is unresponsive, keep pressing the ST TRIM + button while holding the steering wheel at maximum deflection.

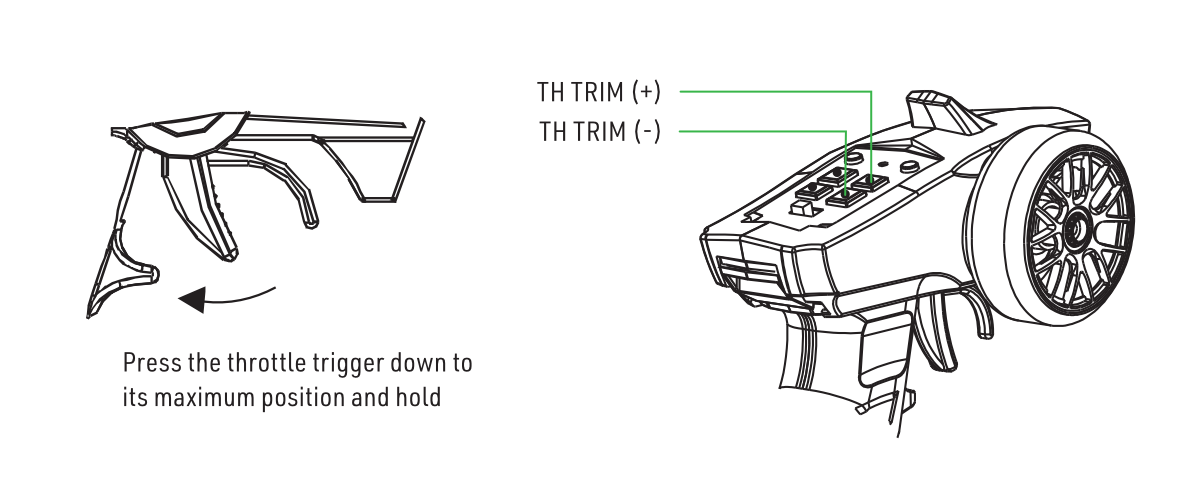

2. Throttle: support the car with its wheels clear of the ground, pull the throttle trigger fully towards you and hold it there; press the TH TRIM + or TH TRIM − buttons to increase or decrease the throttle rate. If the throttle is unresponsive, keep pressing the TH TRIM + button while holding the throttle trigger fully pulled towards you.

Note

If steering responds but throttle does not, or vice versa, the rate setting may be the cause. Check and adjust it as described above.

Car electronics diagram

Keep the battery disconnected while changing wiring. Check the marked polarity and battery-type setting. Use the LiPo setting with the supplied LiPo pack.

Maintenance

Disconnect the drive battery before maintenance.

Proper maintenance is very important. Make sure to always perform appropriate maintenance after driving so that you can enjoy driving without problems next time.

• Completely remove all dirt and debris from the vehicle, especially in the suspension, drive shafts and steering parts.

• Inspect each part and screw for loosening, missing parts or damages.

• You should always make sure your wheels are tight and parts move freely after and before use. Apply fine grease for plastic gears wherever needed.

• Do not use aggressive chemicals or solvents for cleaning, otherwise the electronics and plastic parts might be damaged. Use compressed air for cleaning, a soft paintbrush or toothbrush.

• Protect the electronics against extreme temperatures, moisture, dust, impacts and prolonged direct sunlight.

• Motors, servos and gears are subject to normal wear and may need replacement during the life of the model.

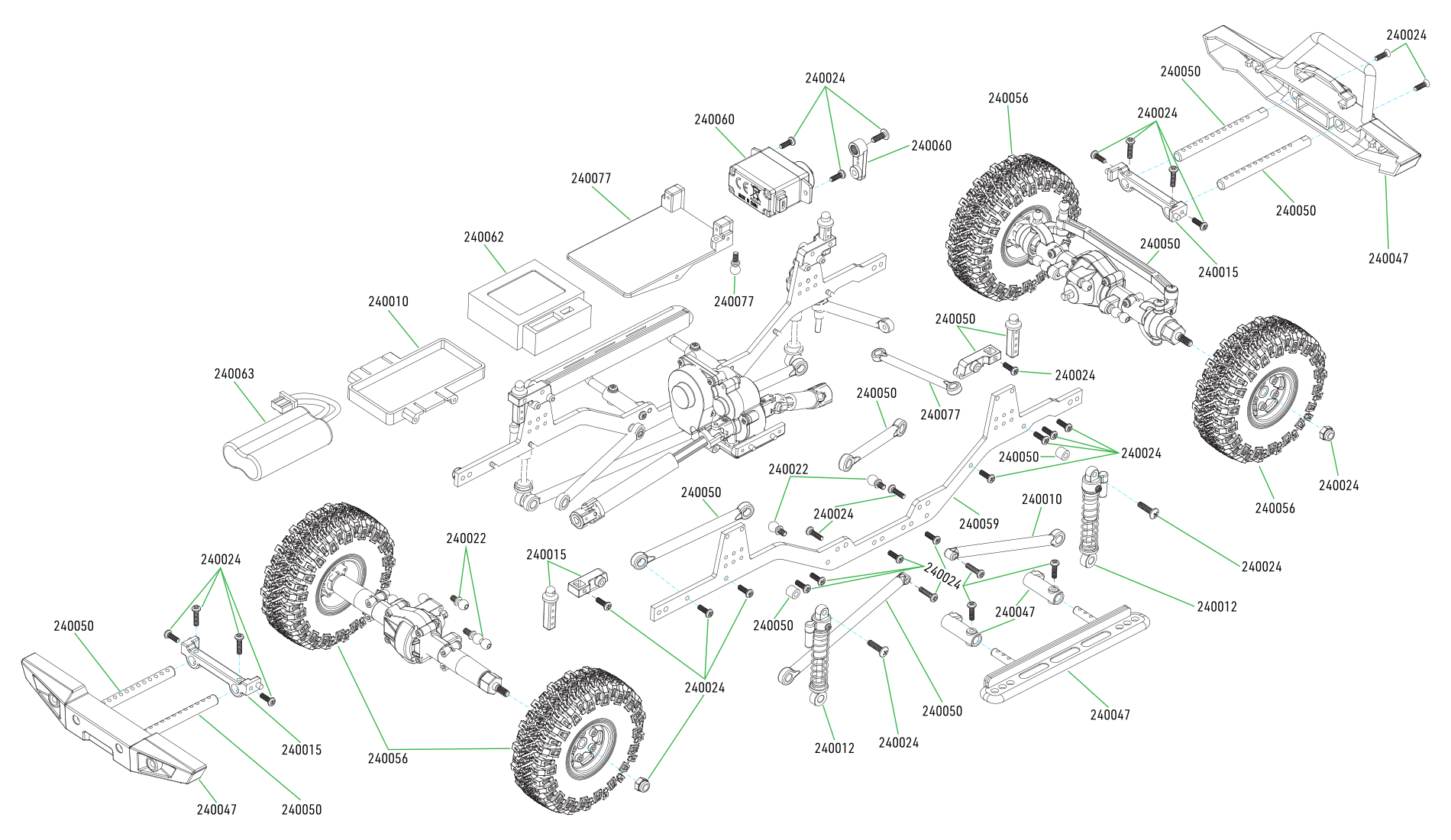

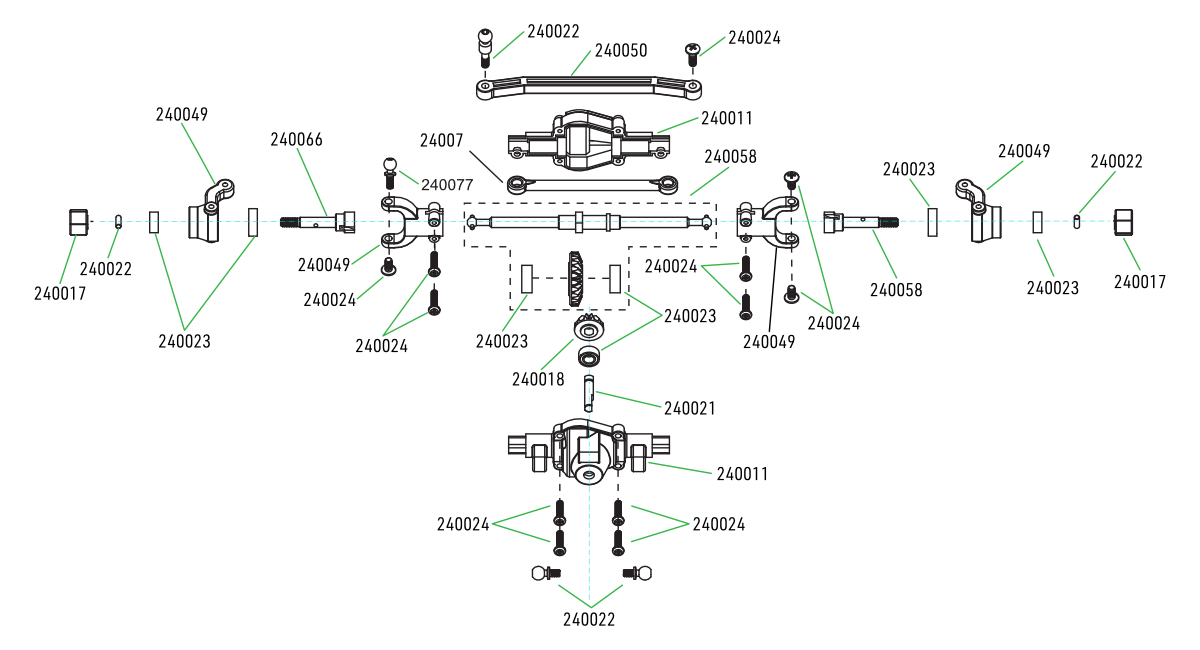

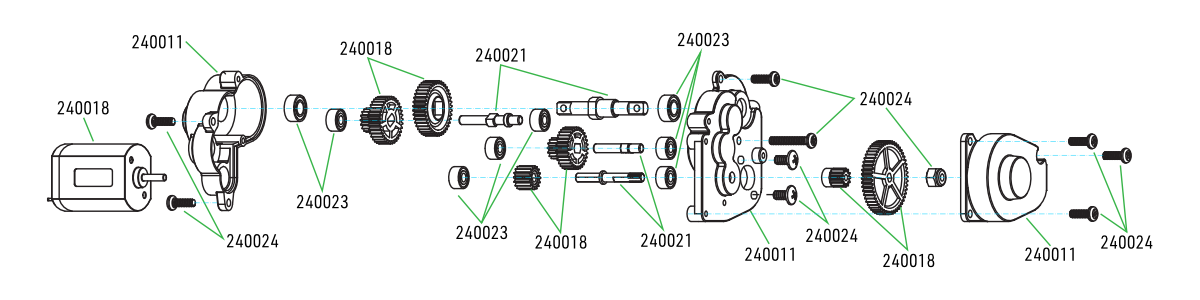

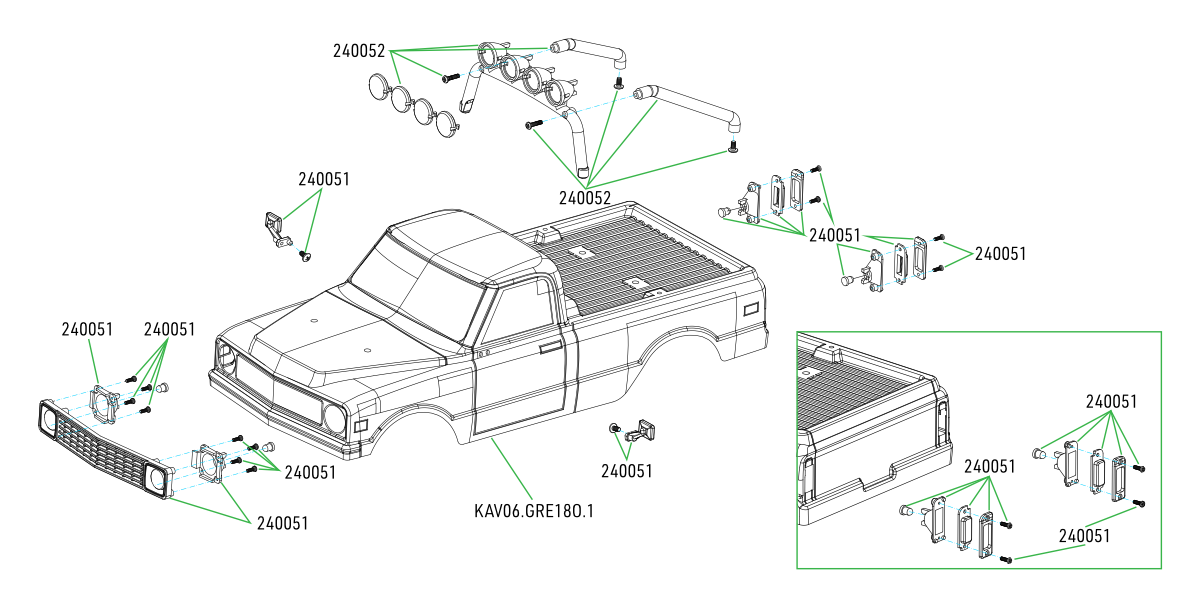

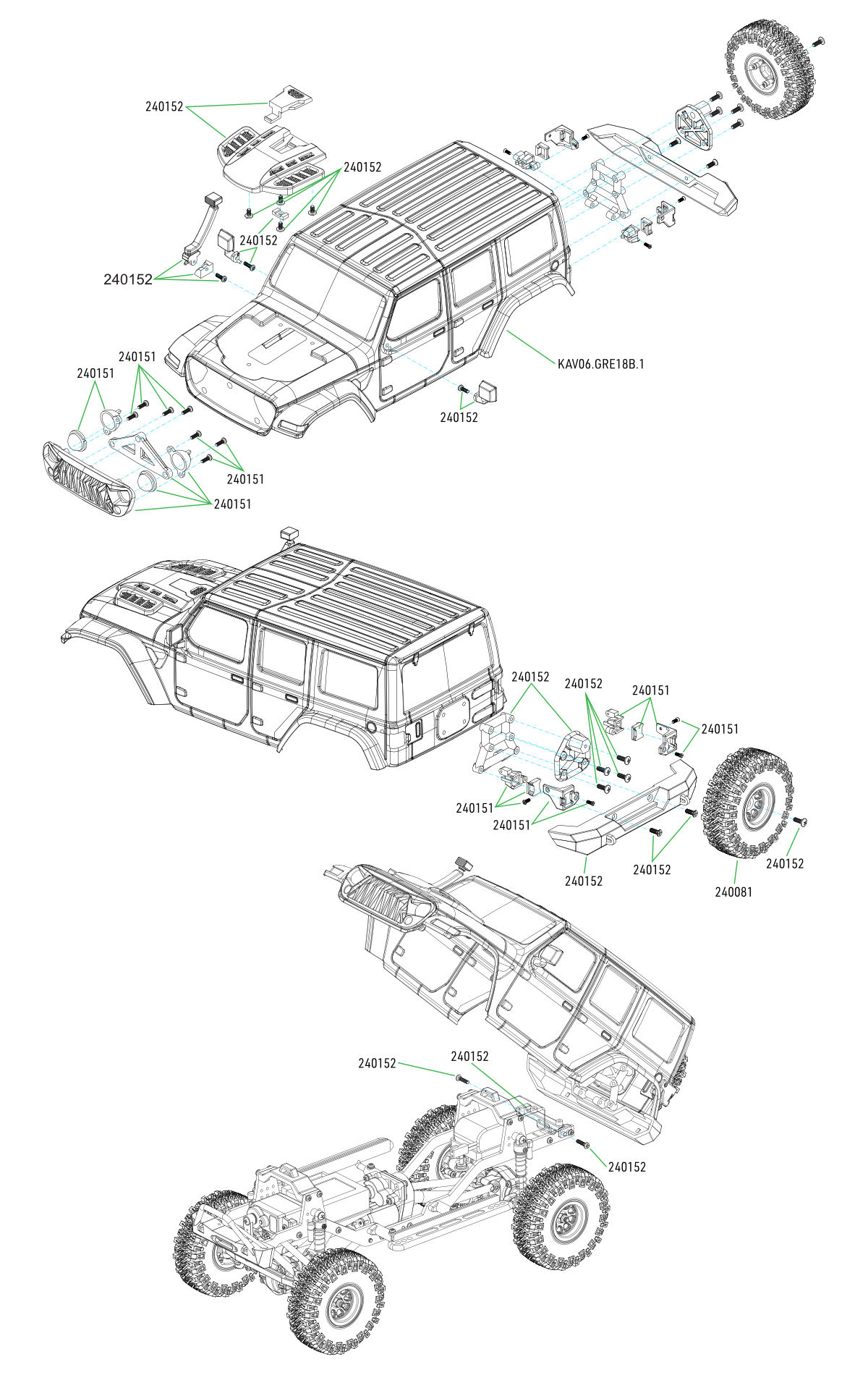

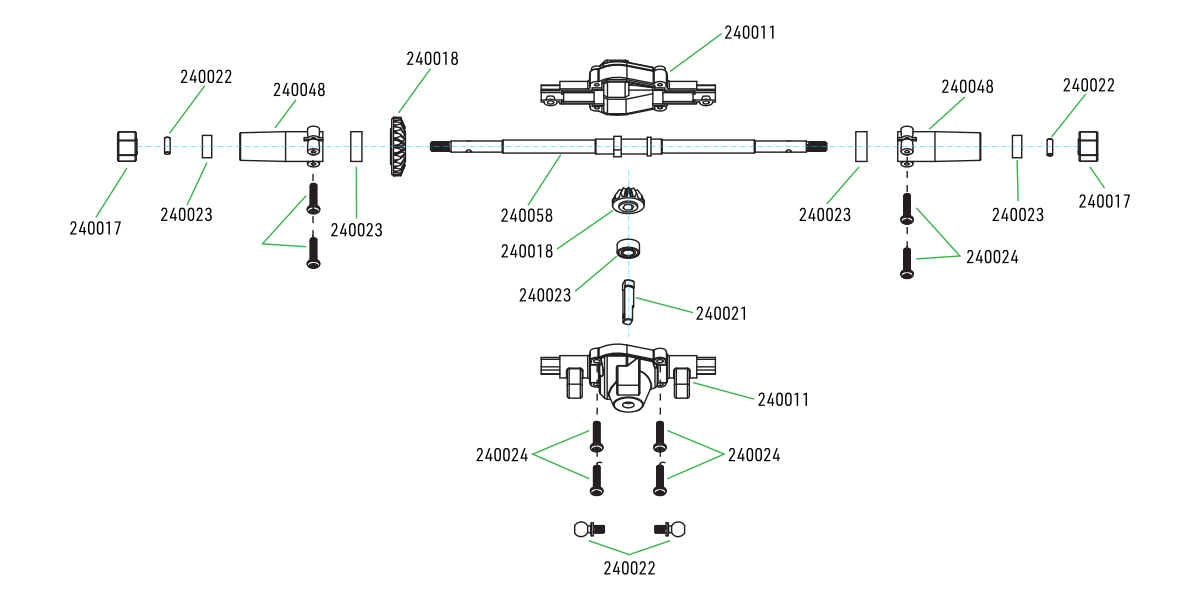

Exploded views

Appendix

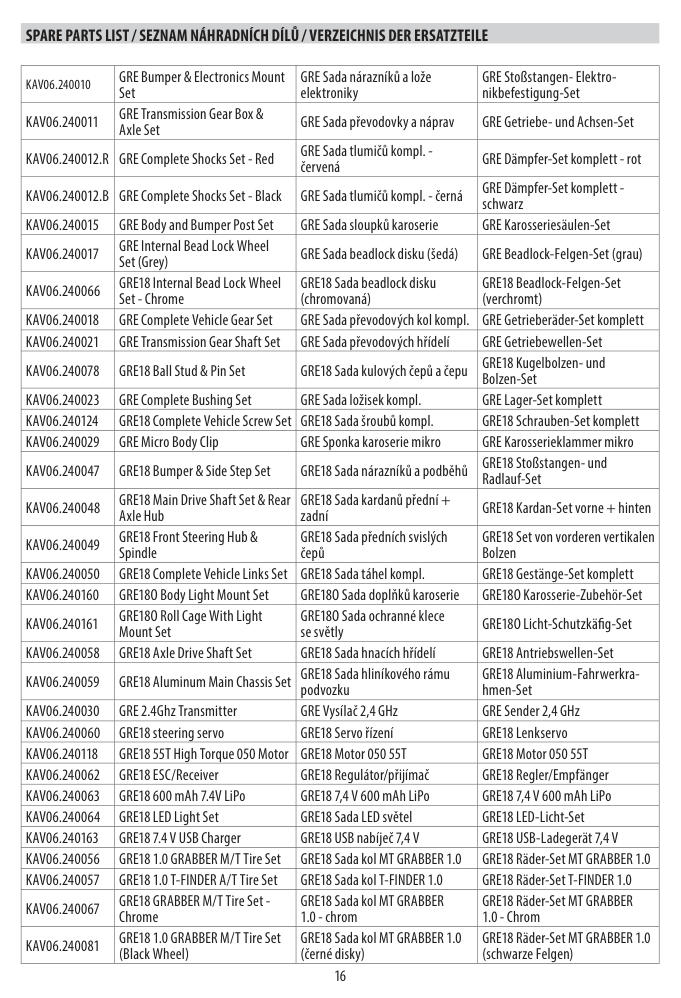

Spare parts

Use the original drawings to identify the assembly and replacement part codes. Match the model and variant before ordering.

Part code	Description
KAV06.240010	GRE Bumper & Electronics Mount Set
KAV06.240011	GRE Transmission Gear Box & Axle Set
KAV06.240012.R	GRE Complete Shocks Set – Red
KAV06.240012.B	GRE Complete Shocks Set – Black
KAV06.240015	GRE Body and Bumper Post Set
KAV06.240017	GRE Internal Bead Lock Wheel Set (Grey)
KAV06.240066	GRE18 Internal Bead Lock Wheel Set – Chrome
KAV06.240018	GRE Complete Vehicle Gear Set
KAV06.240021	GRE Transmission Gear Shaft Set
KAV06.240078	GRE18 Ball Stud & Pin Set
KAV06.240023	GRE Complete Bushing Set
KAV06.240124	GRE18 Complete Vehicle Screw Set
KAV06.240029	GRE Micro Body Clip
KAV06.240047	GRE18 Bumper & Side Step Set
KAV06.240048	GRE18 Main Drive Shaft Set & Rear Axle Hub
KAV06.240049	GRE18 Front Steering Hub & Spindle
KAV06.240050	GRE18 Complete Vehicle Links Set
KAV06.240160	GRE18O Body Light Mount Set
KAV06.240161	GRE18O Roll Cage With Light Mount Set
KAV06.240058	GRE18 Axle Drive Shaft Set
KAV06.240059	GRE18 Aluminum Main Chassis Set
KAV06.240030	GRE 2.4 GHz Transmitter
KAV06.240060	GRE18 steering servo
KAV06.240118	GRE18 55T High Torque 050 Motor
KAV06.240062	GRE18 ESC/Receiver
KAV06.240063	GRE18 600 mAh 7.4 V LiPo
KAV06.240064	GRE18 LED Light Set
KAV06.240163	GRE18 7.4 V USB Charger
KAV06.240056	GRE18 1.0 GRABBER M/T Tire Set
KAV06.240057	GRE18 1.0 T-FINDER A/T Tire Set
KAV06.240067	GRE18 GRABBER M/T Tire Set – Chrome
KAV06.240081	GRE18 1.0 GRABBER M/T Tire Set (Black Wheel)

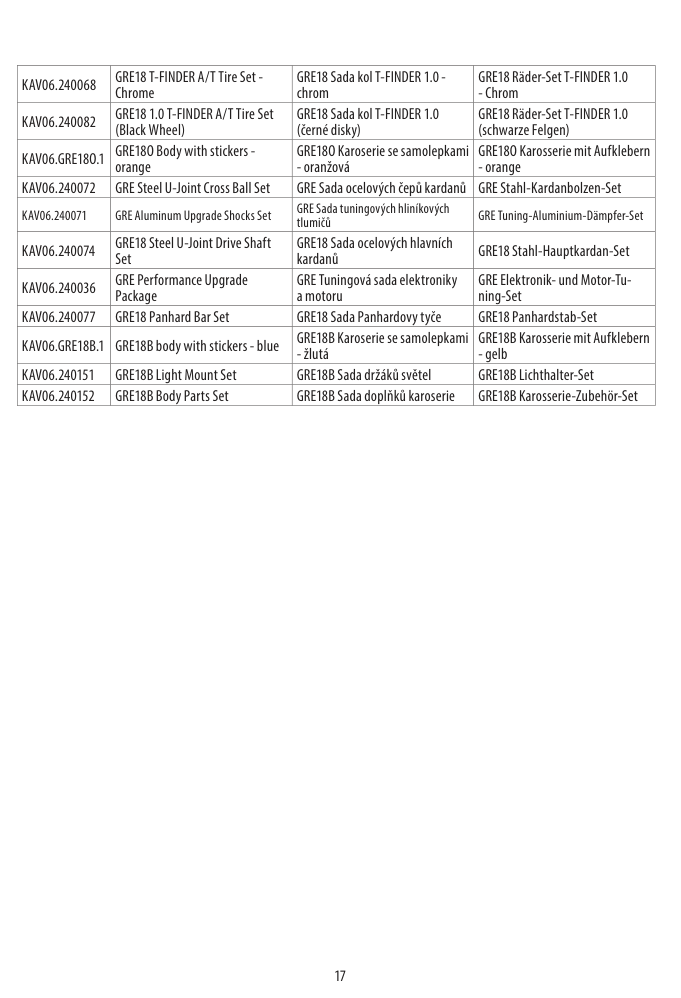

KAV06.240068	GRE18 T-FINDER A/T Tire Set – Chrome
KAV06.240082	GRE18 1.0 T-FINDER A/T Tire Set (Black Wheel)
KAV06.GRE18O.1	GRE18O Body with stickers – orange
KAV06.240072	GRE Steel U-Joint Cross Ball Set
KAV06.240071	GRE Aluminum Upgrade Shocks Set
KAV06.240074	GRE18 Steel U-Joint Drive Shaft Set
KAV06.240036	GRE Performance Upgrade Package
KAV06.240077	GRE18 Panhard Bar Set
KAV06.GRE18B.1	GRE18B body with stickers – blue
KAV06.240151	GRE18B Light Mount Set
KAV06.240152	GRE18B Body Parts Set

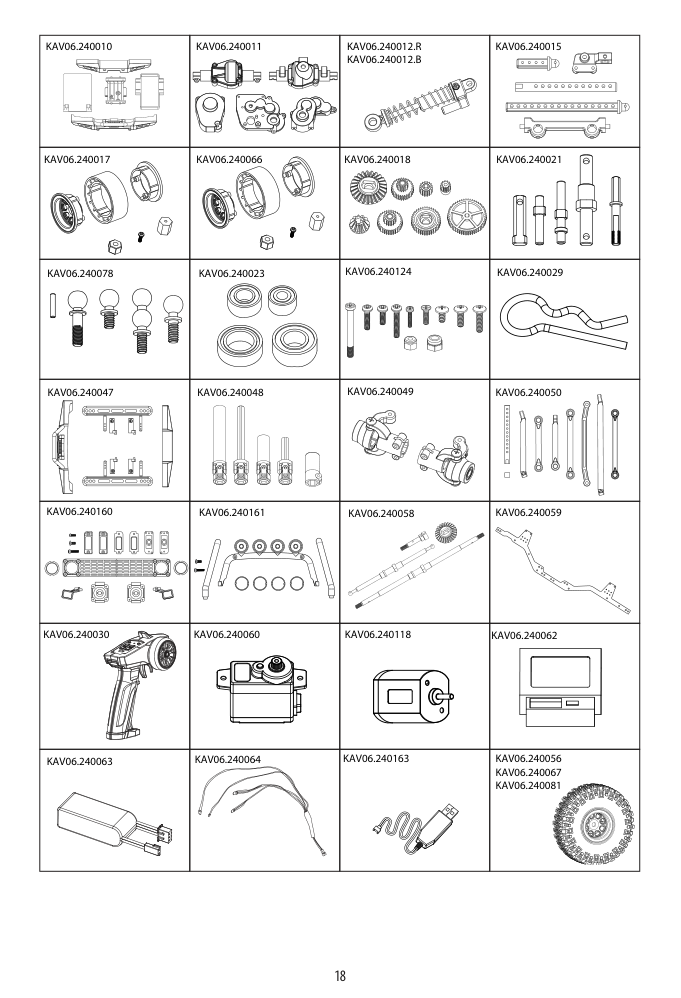

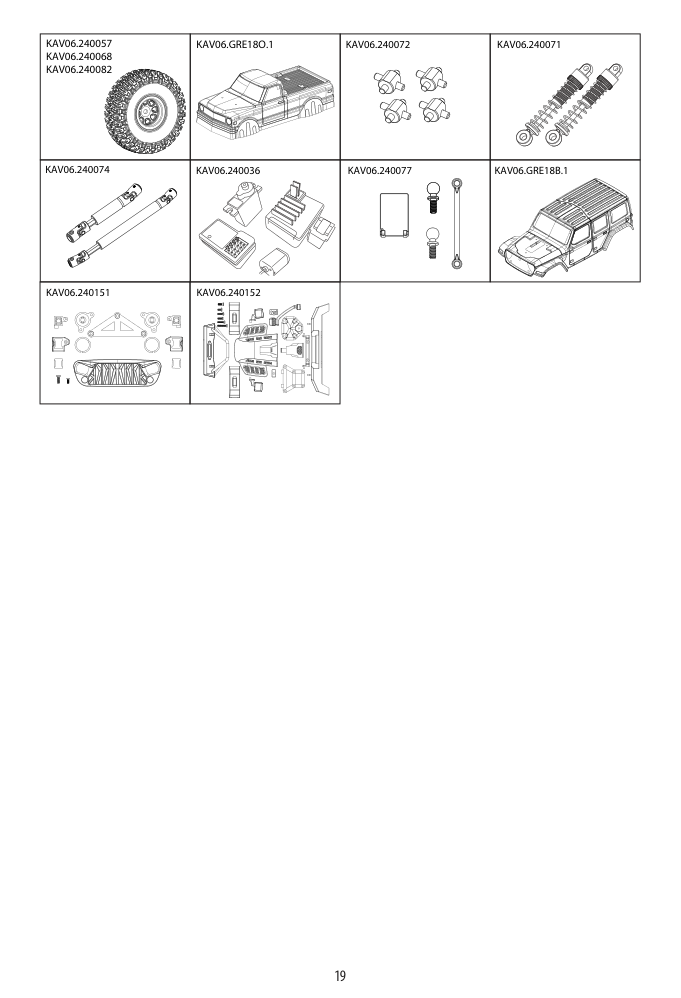

Original spare-parts illustrations

Recycling and waste disposal note (European Union)

Electrical equipment marked with the crossed-out waste bin symbol must not be discarded in the domestic waste; it should be disposed of via the appropriate specialised disposal system. In the countries of the EU (European Union) electrical devices must not be discarded via the normal domestic waste system (WEEE - Waste of Electrical and Electronic Equipment, Directive 2012/19/EU). You can take your unwanted equipment to your nearest public collection point or recycling centre, where it will be disposed of in the proper manner at no charge to you. By disposing of your old equipment in a responsible manner you make an important contribution to the safeguarding of the environment.

EU declaration of conformity (European Union)

Hereby, KAVAN Europe s.r.o. declares that the KAVAN GRE-18 model car with an RC kit is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at www.kavanrc.com/doc.

Guarantee

The KAVAN Europe s.r.o. products are covered by a guarantee that fulfils the currently valid legal requirements in your country. If you wish to make a claim under guarantee, please contact the retailer from whom you first purchased the equipment. The guarantee does not cover faults which were caused in the following ways: crashes, improper use, incorrect connection, reversed polarity, maintenance work carried out late, incorrectly or not at all, or by unauthorised personnel, use of other than genuine KAVAN Europe s.r.o. accessories, modifications or repairs which were not carried out by KAVAN Europe s.r.o. or an authorised service centre, accidental or deliberate damage, defects caused by normal wear and tear, operation outside the Specification, or in conjunction with equipment made by other manufacturers. Please be sure to read the appropriate information sheets in the product documentation.
