KAVAN GRT-16 Tracker - Instruction manual

KAV06.GRT16R

GRT-16 Tracker red

KAV06.GRT16G

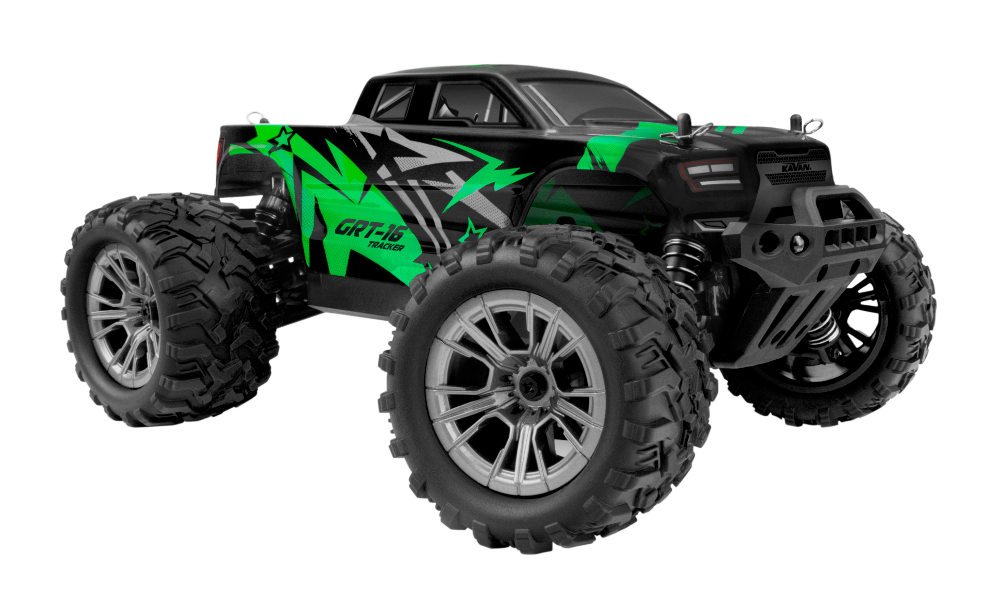

GRT-16 Tracker green

Introduction

The GRT-16 Tracker is an assembled 1:16 four-wheel-drive monster truck with proportional steering, forward/brake/reverse control and selectable full- or half-speed operation. Read the safety notes before preparing the model.

Technical specifications

Scale and drive	1:16 / 4WD
Radio system	2.4 GHz
Transmitter batteries	3× AA alkaline cells, 1.5 V (not included)
Drive battery	Genuine KAVAN GRT-16 7.4 V (2S) LiPo pack and matching USB charger
USB charging supply	5 V / 2 A
Approximate charging time	120 minutes
Recommended battery charging temperature	0–30 °C
Steering dual rate	Approximately 10–48°
Speed modes	L: approximately 25 km/h; H: approximately 50 km/h
Factory speed setting	L (half speed)

Set contents

GRT-16 Tracker, GRT-16 2.4 GHz transmitter, LiPo battery, USB charging cable, four body clips, hex wrench and instruction manual.

Warnings

• This is not a toy! Independent operation is intended for users older than 15 years. Younger users require proper adult supervision.
• Failure to operate or maintain this vehicle safely can result in bodily harm.
• Replace damaged components with original factory parts only. Pay special attention to the polarity of all vehicle wiring.
• Use only the genuine KAVAN LiPo battery pack specified for the GRT-16 Tracker. Do not overcharge or overdischarge the battery as doing so may cause the battery to become a fire hazard. If the battery should become hot during charging, discontinue charging immediately and disconnect the battery from the charger.
• Never leave the battery unattended while charging. If you are unsure of how to charge this battery, please seek the advice of experienced RC users. Never let children charge the battery without adult supervision.
• The motor will become hot during use. Allow 10–15 minutes between runs for the vehicle to cool down. Doing so will prolong the life of your vehicle.
• Use common sense when selecting the environment to operate your vehicle. Do not run it in the streets, car parks or anywhere you can run into a full-size car, people or animals. Do not operate near power cables, cellular/radio towers, deep water or unstable terrain. The operator is solely responsible for their actions.
• The product is composed of precision electrical components. It is critical to keep the product away from moisture and other contaminants. If exposed to a humid environment, make sure the electronics are fully dried before using them again.
• Always check the radio range of the vehicle before operation to prevent damage to your model due to radio loss or interference.
• Operate this product to your ability. If the vehicle is dangerous to retrieve from a place, do not risk injury to retrieve it.
• Follow the model-specific Power on and pair procedure with the wheels clear of the ground. Always switch off the vehicle and remove its battery before switching off the transmitter.
• Never allow transmitter batteries to run low as it may cause loss of vehicle control.
• Plastics on the vehicle are flammable and susceptible to damage or deformation due to extreme heat and cold climates. Do not store the model near any source of heat such as an oven or heater. Store the model indoors, in a dry, room-temperature environment.
• Never shorten the receiver antenna; this may affect the operational range of your radio system.

Lithium polymer battery safety

• Never charge a lithium polymer battery with a charger designed for NiCd, NiMH, or any other type of battery than LiPo. Use ONLY a charger designed for LiPo batteries.
• Do not leave the LiPo battery unattended during charging.
• Do not overcharge the battery.
• Always charge LiPo batteries placed on non-flammable, heat-resistant surfaces.
• Use of a LiPo-safe bag or container while charging is strongly recommended. Do not allow LiPo cells to overheat at any time. Cells heated above 60 °C are likely to be damaged and present a fire risk.
• Do not charge the LiPo pack while it is still in the model. Never charge or store battery packs in a vehicle.
• Do not over-discharge LiPo; doing so will damage the battery.
• Do not expose LiPo cells to water or moisture at any time.
• Do not store battery near open flame or heater.
• Do not assemble LiPo cells or pre-assembled packs together with other LiPo cells or packs.
• Always store LiPo batteries in a secure location away from children.
• Always remove the LiPo battery if the model is involved in any kind of crash.
• Carefully inspect the battery and connectors for even the smallest damage.
• Do not allow the electrolyte to get into the eyes or on the skin. Wash affected areas immediately if they come into contact with electrolytes. Do not alter or modify the connectors or wires of a LiPo battery pack.
• Always inspect the condition of the battery before charging and operating.
• Do not short-circuit the LiPo battery.
• Avoid direct contact with a leaky/damaged battery.
• Do not charge the battery out of the recommended temperature range (0–30 °C).

Attention

Cells may become hot after usage. Allow the pack to cool to room temperature before recharging.

Main section

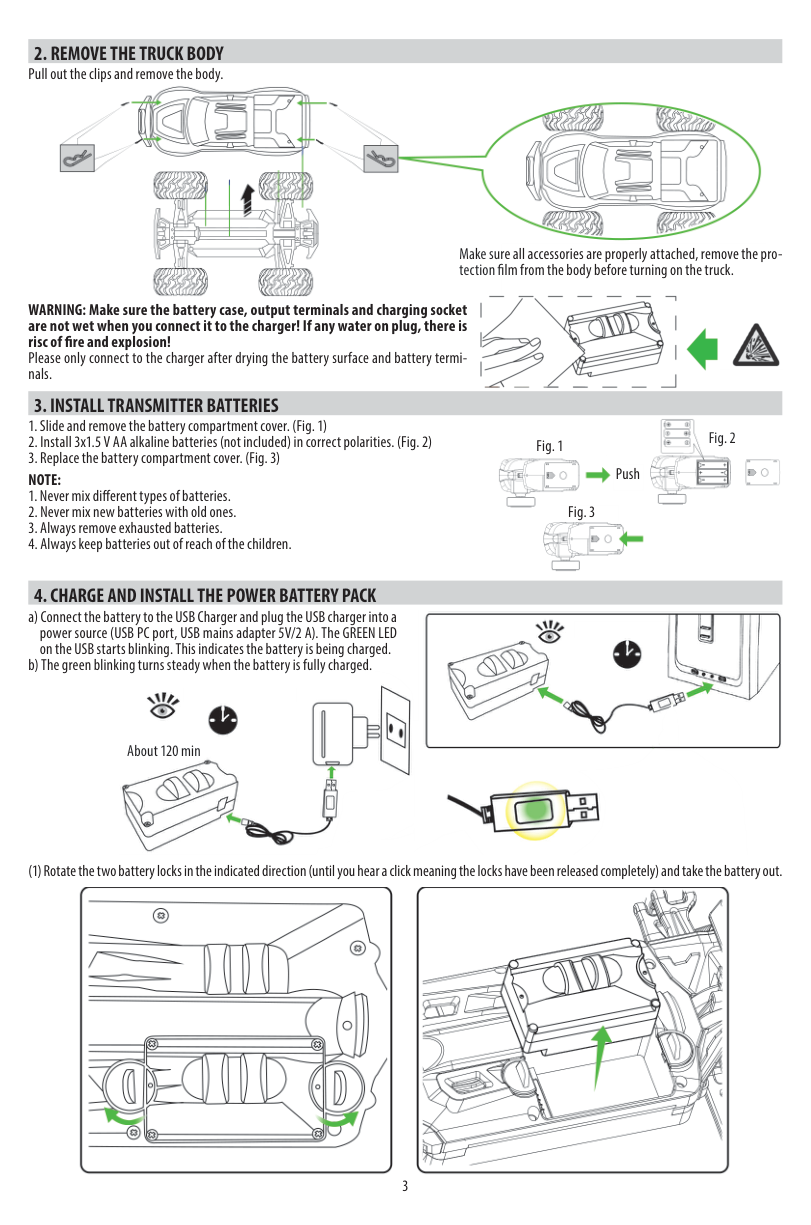

Remove the body and prepare the transmitter

1. Pull out the four body clips and lift off the body. Check that all accessories are attached and peel the protective film from the body.
2. Slide off the transmitter battery cover. Install three fresh 1.5 V AA alkaline batteries in the marked polarity, then replace the cover.
3. Do not mix different types, old and new cells. Remove exhausted batteries and keep them away from children.
4. Set the speed switch to L while learning.

Charge and install the drive battery

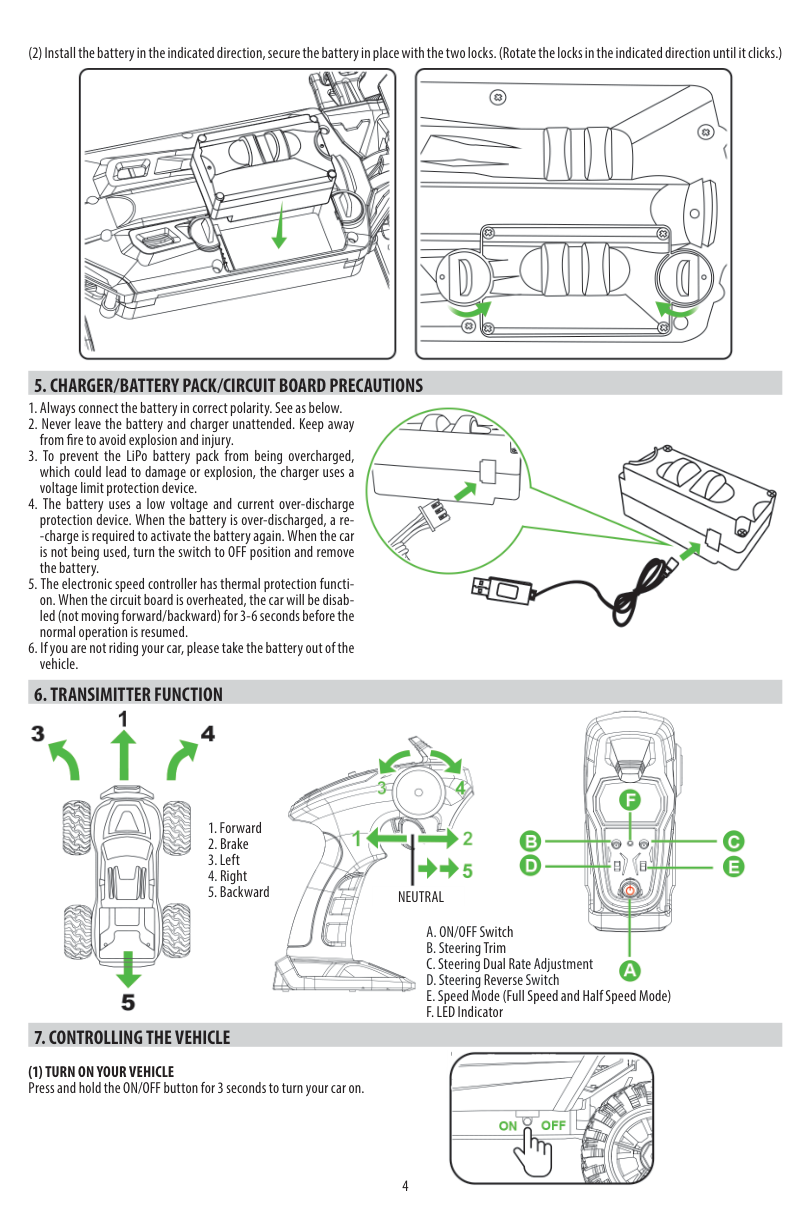

1. With the model switched off, rotate both battery locks until they click into the released position. Remove the battery.
2. Check that the case, output terminals and charging socket are completely dry.
3. Connect the battery to the supplied USB charger, then connect the charger to a 5 V / 2 A USB supply. Its green LED flashes during charging.
4. After approximately 120 minutes, a steady green LED indicates a fully charged battery. Disconnect the charger from the supply and battery.
5. Fit the battery in the indicated direction and rotate both locks until they click into the secured position.

Danger

Water on the battery terminals or in the charging socket can cause fire or explosion. Do not connect a wet battery. Charge outside the vehicle under constant supervision.

Power on and pair

1. Support the vehicle with all wheels clear of the ground and keep the throttle trigger at neutral.
2. Press and hold the vehicle ON/OFF button for 3 seconds.
3. Switch on the transmitter. It pairs with the vehicle automatically.
4. Confirm that the vehicle headlights remain steadily lit. The transmitter indicator is red at rest and turns green when you move the steering wheel or trigger.

Indication	Meaning/action
Headlights flashing; transmitter LED flashing green	Not paired; check the pairing procedure
Headlights steady; transmitter LED red at rest	Paired
Headlights start flashing during use	Drive battery low; stop and recharge
Headlights flash rapidly	Vehicle fault; stop and inspect
Transmitter LED flashes red slowly	Transmitter batteries low; replace them

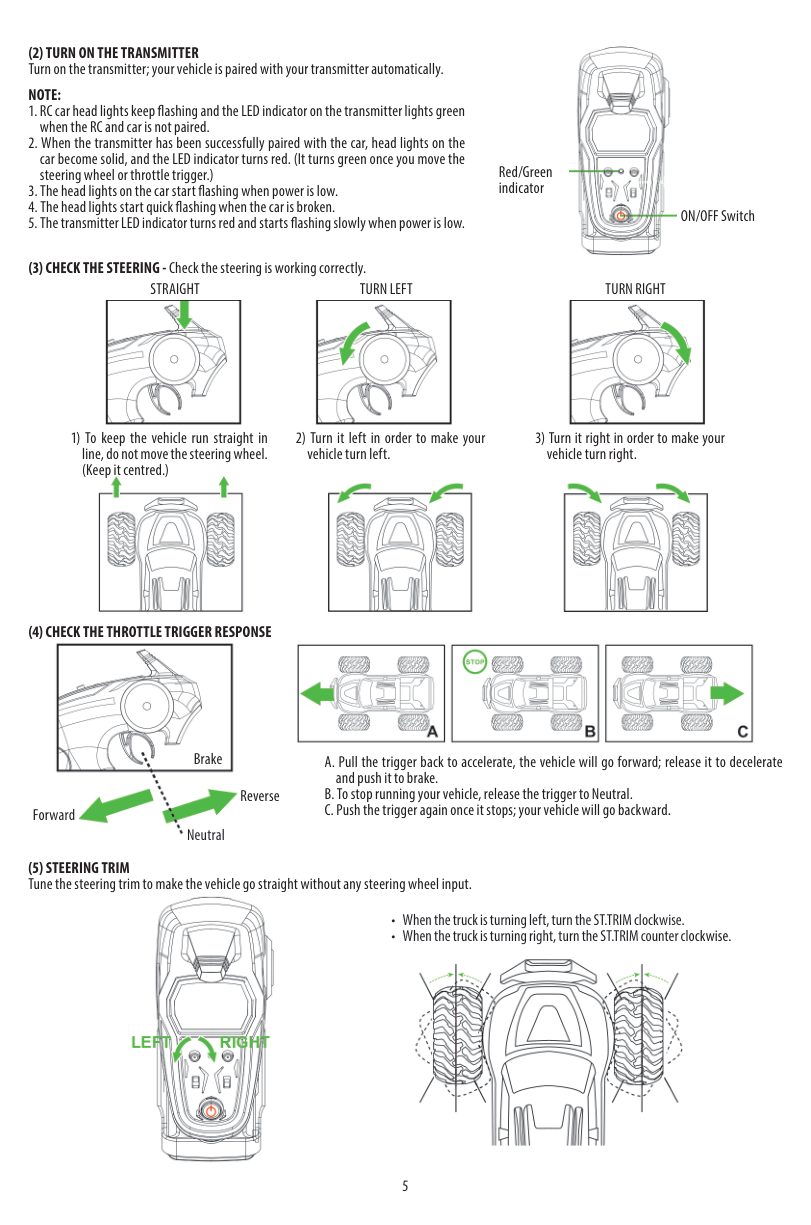

Check the controls

1. Turn the wheel left and right. The front wheels must follow the same direction. If the direction is wrong, change the steering reverse switch between NOR and REV.
2. Centre the wheel. Adjust ST.TRIM until the vehicle tracks straight: turn clockwise if it veers left, counterclockwise if it veers right.
3. Pull the trigger gently for forward drive. Release it to neutral to decelerate. Push it forward to brake; after the vehicle stops, return to neutral and push again for reverse.

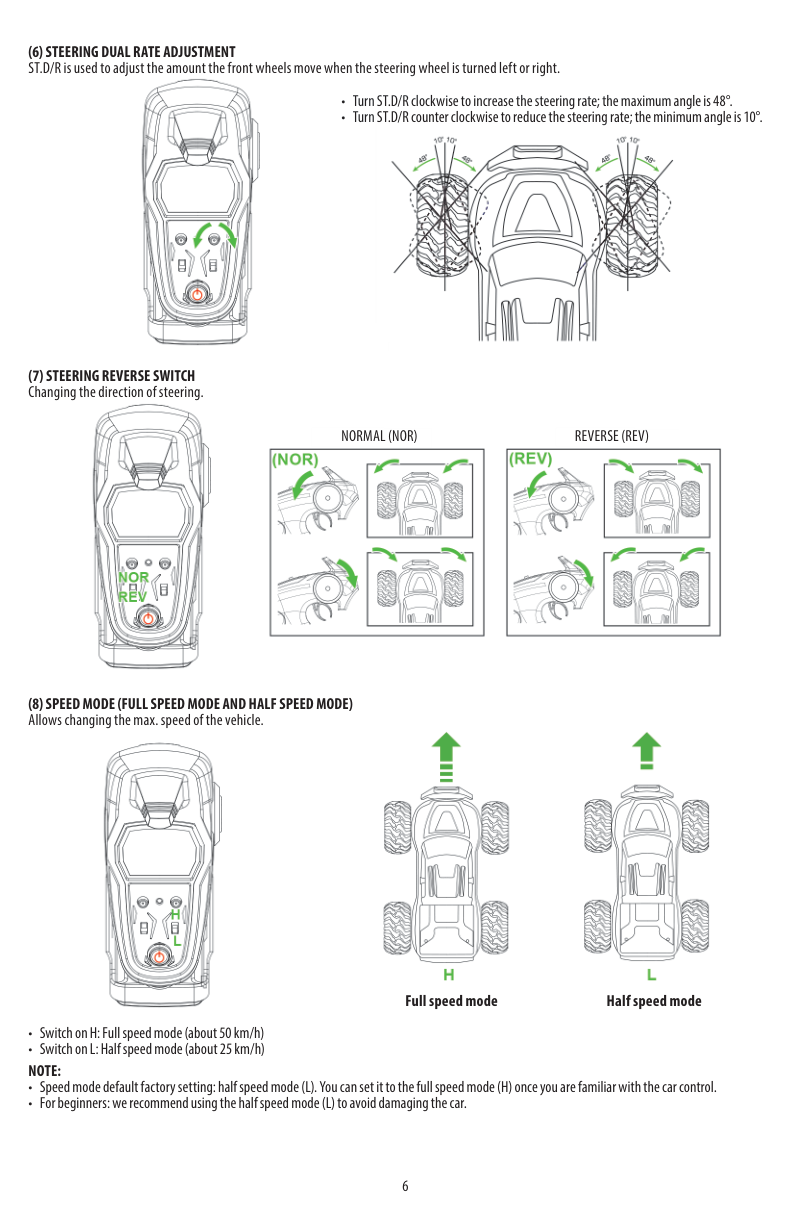

4. Turn ST.D/R clockwise for more steering travel or counterclockwise for less (approximately 10–48°).
5. Keep the speed selector at L for half speed. Select H only after you can reliably control steering, braking and reverse.
6. Check radio response throughout the intended driving area. Do not drive if control is delayed or intermittent.

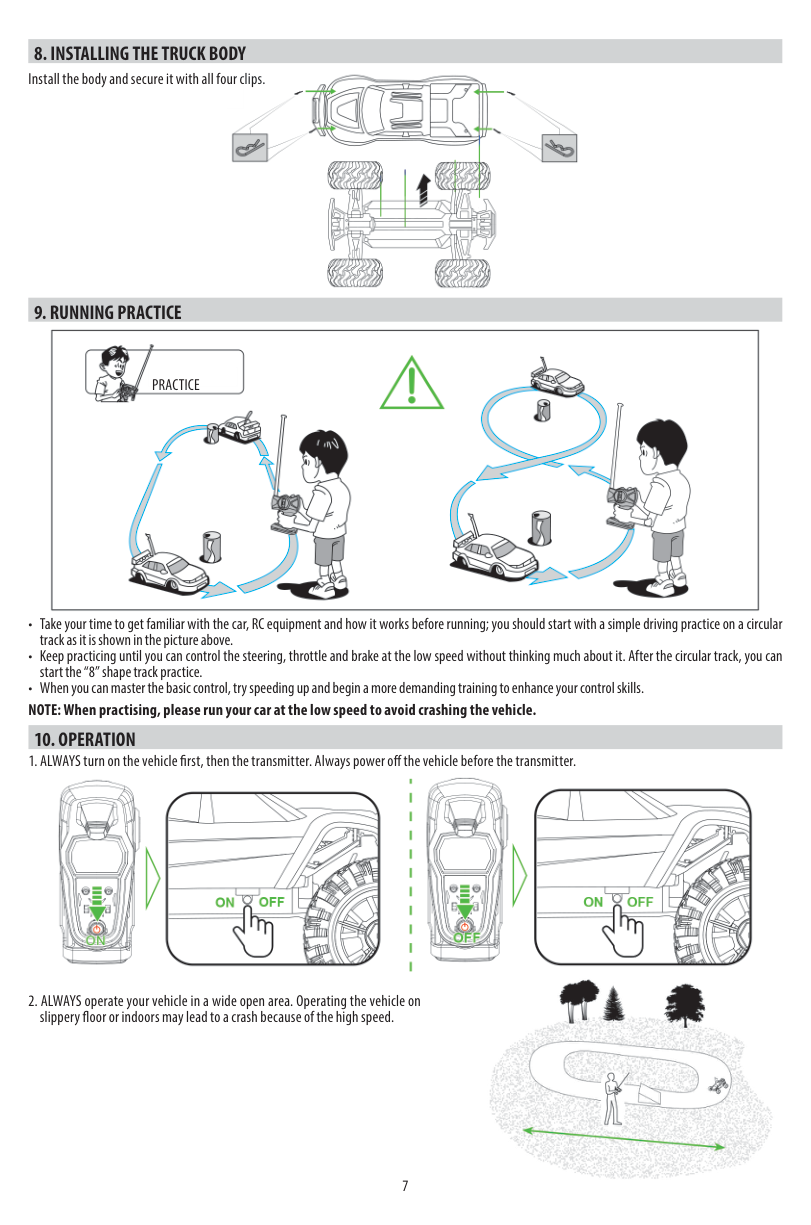

Fit the body and practise driving

1. Fit the body and secure all four clips.
2. Start on a wide, open, dry surface at low speed. Avoid slippery floors and confined indoor spaces.
3. Practise a circle, then a figure of eight. Increase speed only after steering and braking become familiar.
4. On the first run with a charged battery, drive smoothly at approximately half throttle on a flat surface for that charge to bed in the motor brushes. Skipping this running-in can reduce motor performance and service life.
5. Avoid frequent turns, repeated abrupt starts and stops, pushing objects, tall grass, puddles, deep water and continuous uphill running. These loads can overheat the motor.
6. Between runs, allow 10–15 minutes for cooling.

Stop and maintain the vehicle

1. Return the trigger to neutral and stop the model. Switch the vehicle off, remove the battery and only then switch the transmitter off.
2. Remove dirt from the suspension, drive shafts and steering with a soft brush or compressed air. Do not use aggressive chemicals or solvents.
3. Check all screws, wheels and parts for damage or looseness. Check that the drivetrain and steering move freely before and after each run. Apply a small amount of grease suitable for plastic gears where needed.
4. Store the model dry at room temperature, away from heat, extreme cold and children. Protect the electronics from dust and prolonged direct sunlight. Motors, servos and gears wear in normal use and may need replacement.

Protection functions

The supplied charger limits charging voltage. The battery includes low-voltage/current protection; if it cuts off, recharge it with the supplied charger to reactivate it. Do not deliberately run to deep discharge. The ESC can interrupt forward/reverse operation for approximately 3–6 seconds when overheated. Stop and let the model cool instead of repeatedly loading the protection circuit.

Appendix

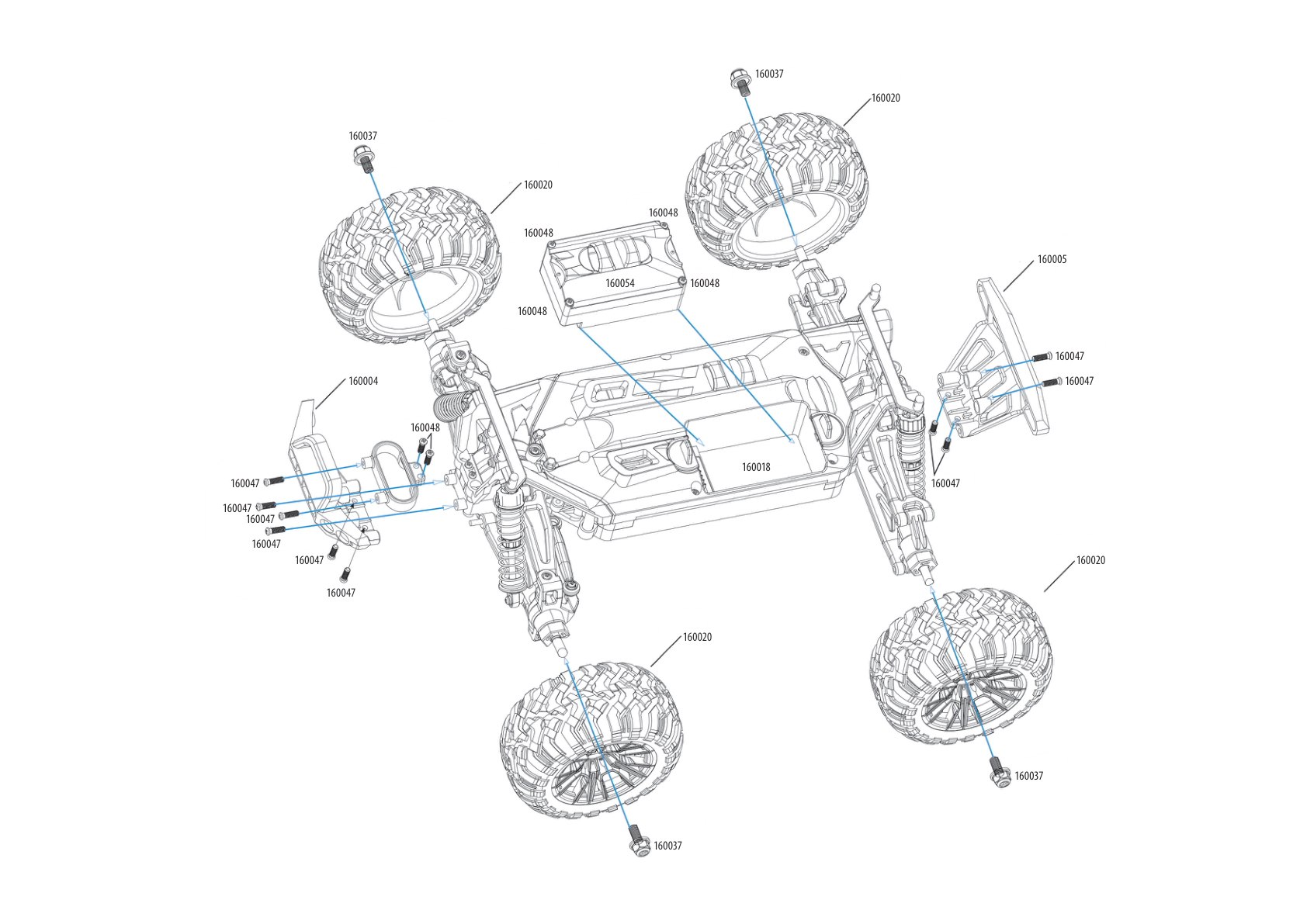

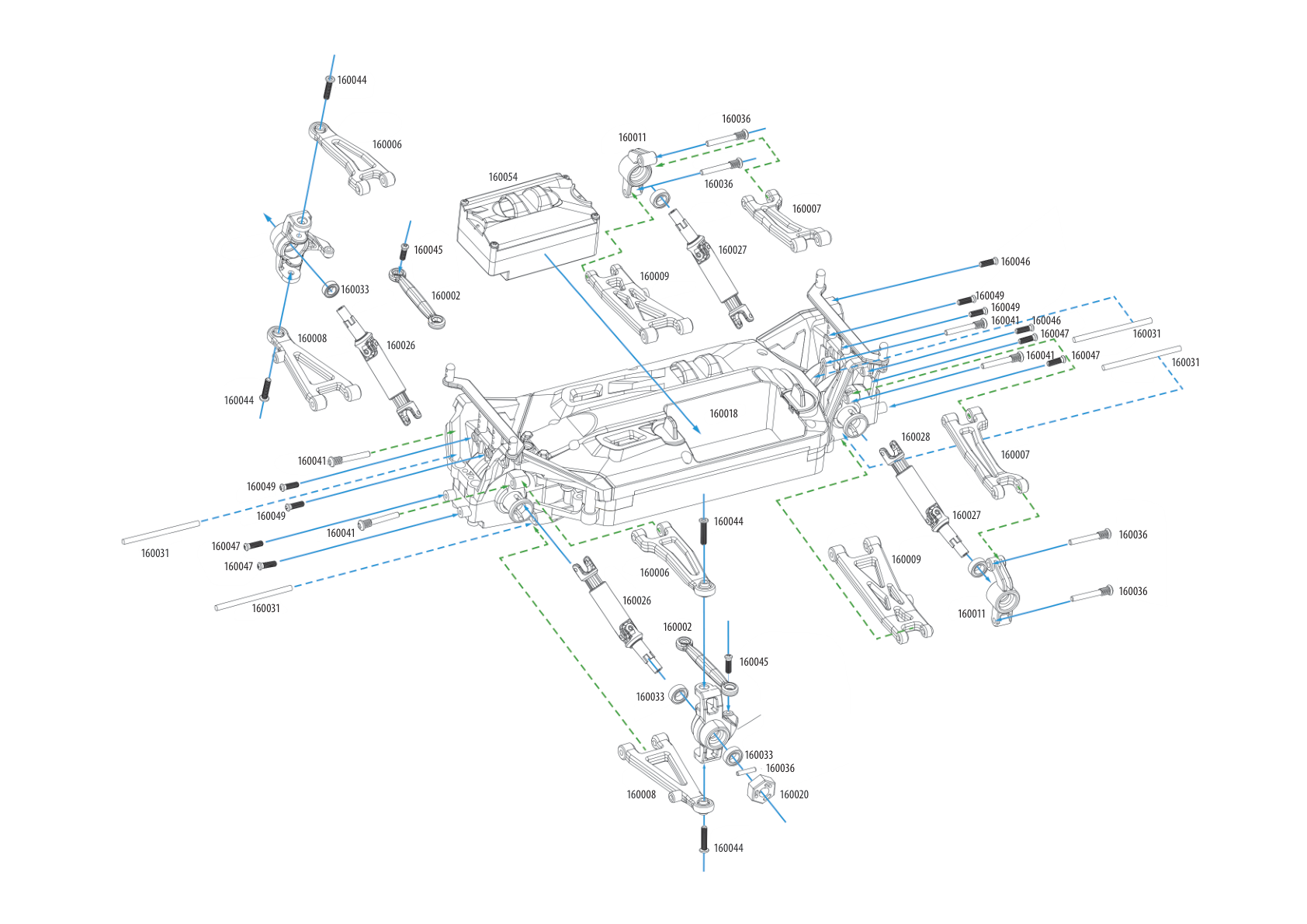

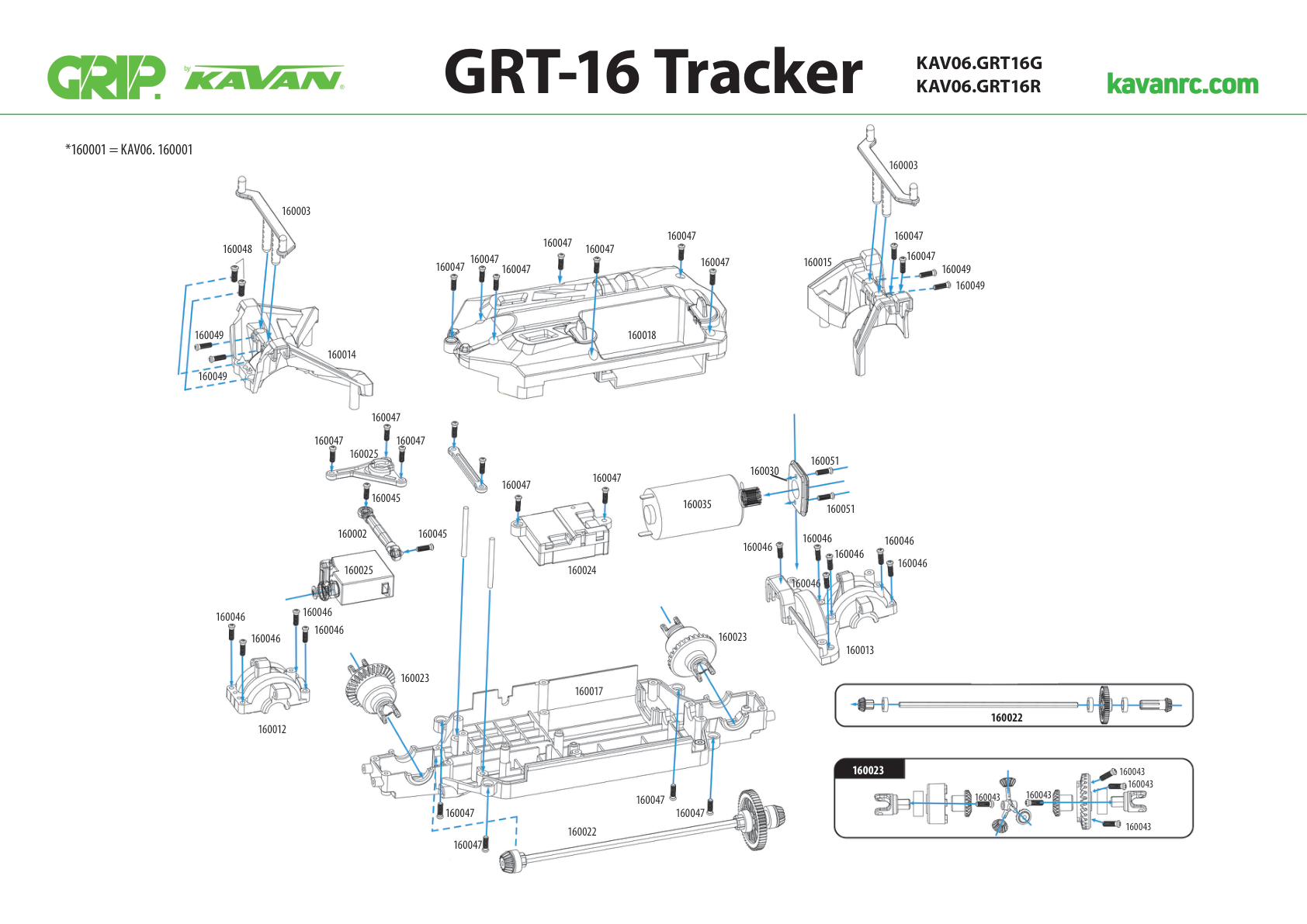

Original drawings and spare parts

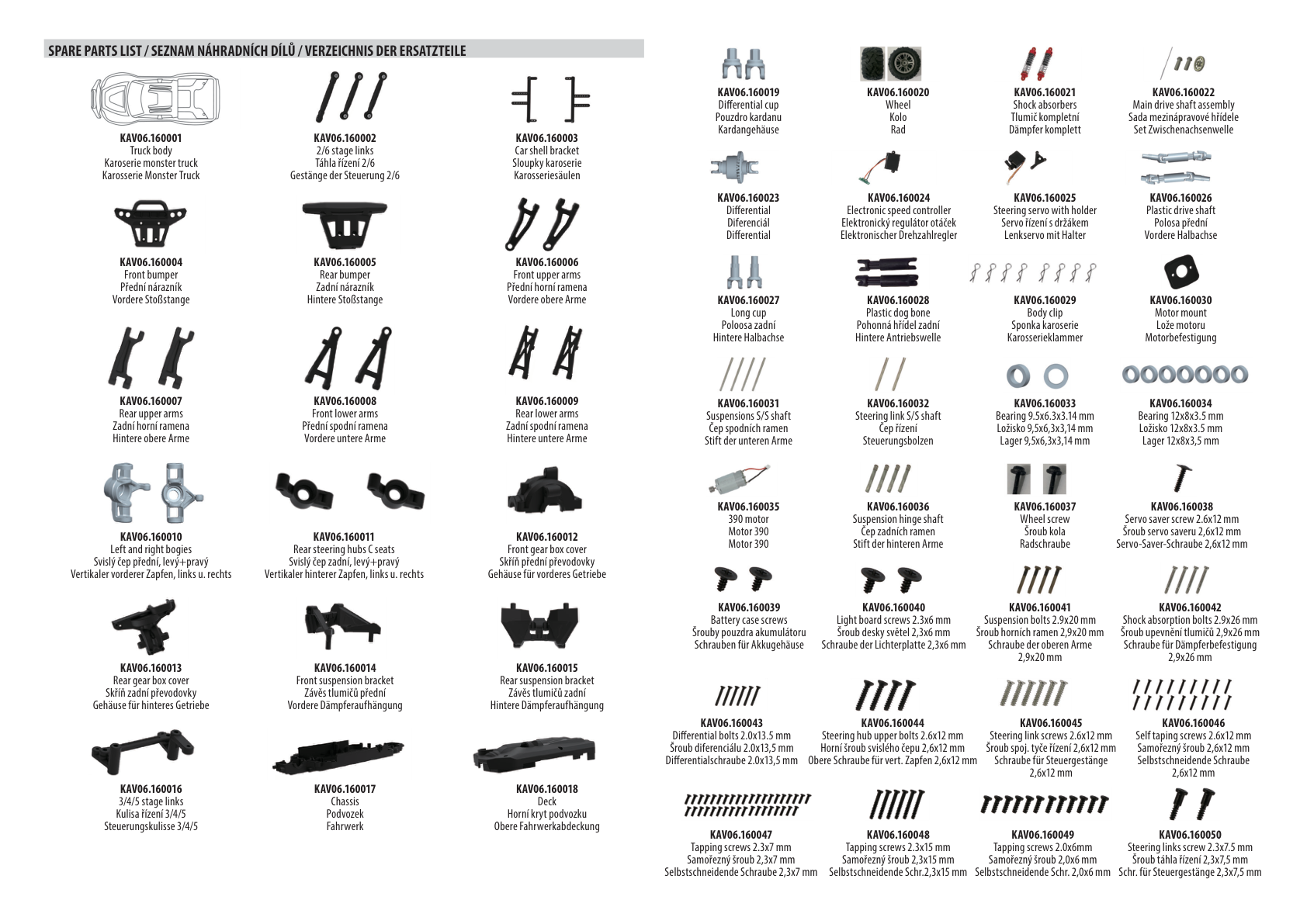

Spare parts key

Part code	Description
KAV06.160001	Monster truck body
KAV06.160002	Steering links 2/6
KAV06.160003	Body posts
KAV06.160004	Front bumper
KAV06.160005	Rear bumper
KAV06.160006	Front upper suspension arms
KAV06.160007	Rear upper suspension arms
KAV06.160008	Front lower suspension arms
KAV06.160009	Rear lower suspension arms
KAV06.160010	Left and right front steering knuckles
KAV06.160011	Left and right rear hub carriers
KAV06.160012	Front gearbox housing
KAV06.160013	Rear gearbox housing
KAV06.160014	Front shock tower
KAV06.160015	Rear shock tower
KAV06.160016	Steering linkage 3/4/5
KAV06.160017	Chassis
KAV06.160018	Upper chassis cover
KAV06.160019	Differential outdrive cups
KAV06.160020	Wheel
KAV06.160021	Complete shock absorbers
KAV06.160022	Centre drive shaft assembly
KAV06.160023	Differential
KAV06.160024	Electronic speed controller
KAV06.160025	Steering servo with holder
KAV06.160026	Front plastic drive shafts
KAV06.160027	Rear axle stub shafts
KAV06.160028	Rear plastic dogbone drive shafts
KAV06.160029	Body clips
KAV06.160030	Motor mount
KAV06.160031	Lower suspension arm pins
KAV06.160032	Steering linkage pins
KAV06.160033	Bearing 9.5×6.3×3.14 mm
KAV06.160034	Bearing 12×8×3.5 mm
KAV06.160035	390 motor
KAV06.160036	Rear suspension arm hinge pins
KAV06.160037	Wheel screws
KAV06.160038	Servo saver screws 2.6×12 mm
KAV06.160039	Battery case screws
KAV06.160040	Light board screws 2.3×6 mm
KAV06.160041	Upper suspension arm bolts 2.9×20 mm
KAV06.160042	Shock mounting bolts 2.9×26 mm
KAV06.160043	Differential screws 2.0×13.5 mm
KAV06.160044	Upper steering knuckle screws 2.6×12 mm
KAV06.160045	Steering linkage screws 2.6×12 mm
KAV06.160046	Self-tapping screws 2.6×12 mm
KAV06.160047	Self-tapping screws 2.3×7 mm
KAV06.160048	Self-tapping screws 2.3×15 mm
KAV06.160049	Self-tapping screws 2.0×6 mm
KAV06.160050	Steering link screws 2.3×7.5 mm
KAV06.160051	Motor mounting screws M2.5×5.5 mm

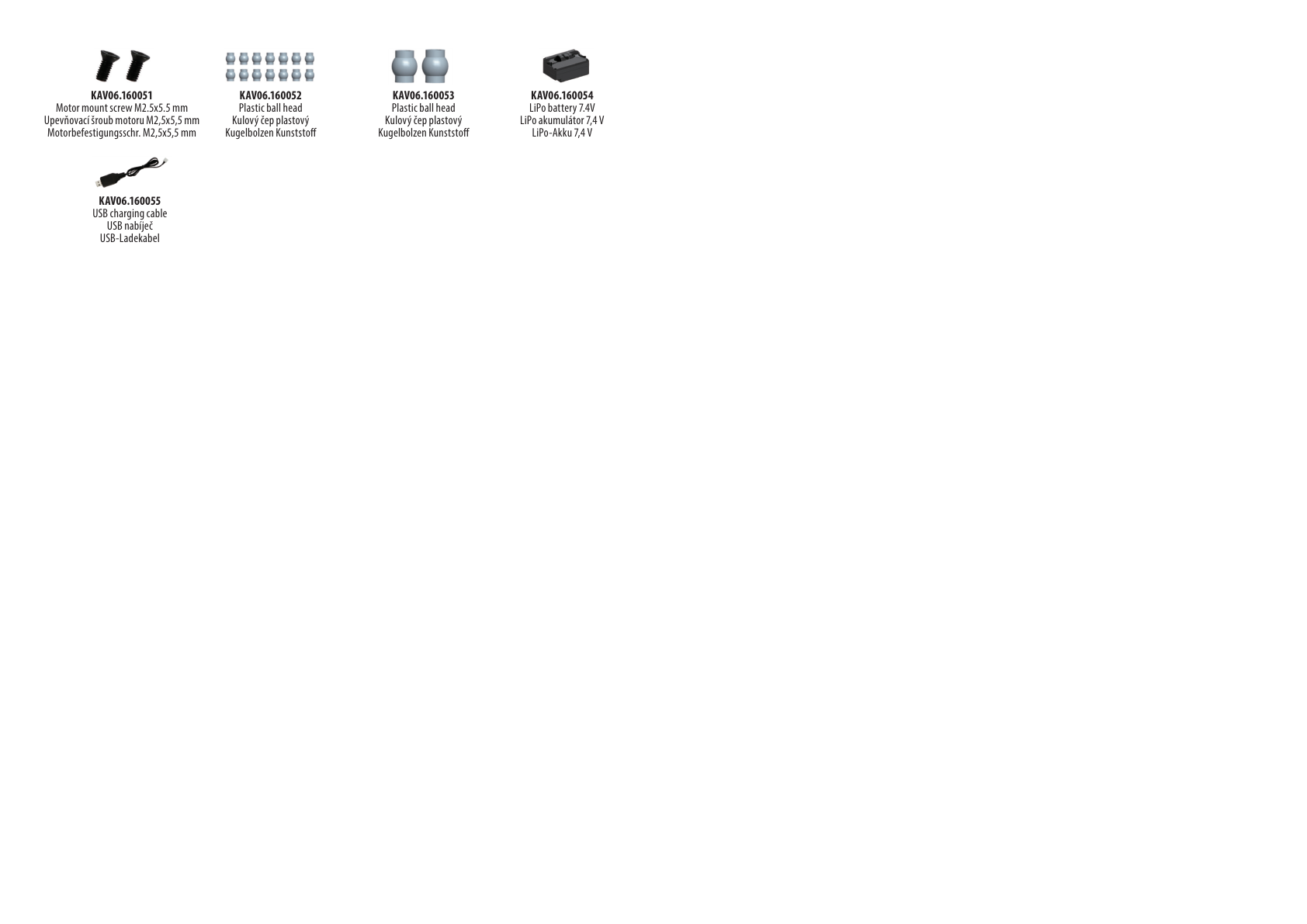

KAV06.160052	Plastic ball heads
KAV06.160053	Plastic ball heads
KAV06.160054	LiPo battery 7.4 V
KAV06.160055	USB charging cable

Recycling and waste disposal note (European Union)

Electrical equipment marked with the crossed-out waste bin symbol must not be discarded in the domestic waste; it should be disposed of via the appropriate specialised disposal system. In the countries of the EU (European Union) electrical devices must not be discarded via the normal domestic waste system (WEEE - Waste of Electrical and Electronic Equipment, Directive 2012/19/EU). You can take your unwanted equipment to your nearest public collection point or recycling centre, where it will be disposed of in the proper manner at no charge to you. By disposing of your old equipment in a responsible manner you make an important contribution to the safeguarding of the environment.

EU declaration of conformity (European Union)

Hereby, KAVAN Europe s.r.o. declares that the equipment KAVAN GRT-16 Tracker model car with its RC system and supplied accessories is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at www.kavanrc.com/doc.

Guarantee

The KAVAN Europe s.r.o. products are covered by a guarantee that fulfils the currently valid legal requirements in your country. If you wish to make a claim under guarantee, please contact the retailer from whom you first purchased the equipment. The guarantee does not cover faults which were caused in the following ways: crashes, improper use, incorrect connection, reversed polarity, maintenance work carried out late, incorrectly or not at all, or by unauthorised personnel, use of other than genuine KAVAN Europe s.r.o. accessories, modifications or repairs which were not carried out by KAVAN Europe s.r.o. or an authorised service centre, accidental or deliberate damage, defects caused by normal wear and tear, operation outside the Specification, or in conjunction with equipment made by other manufacturers. Please be sure to read the appropriate information sheets in the product documentation.
