KAVAN C1 Plus - Instruction manual

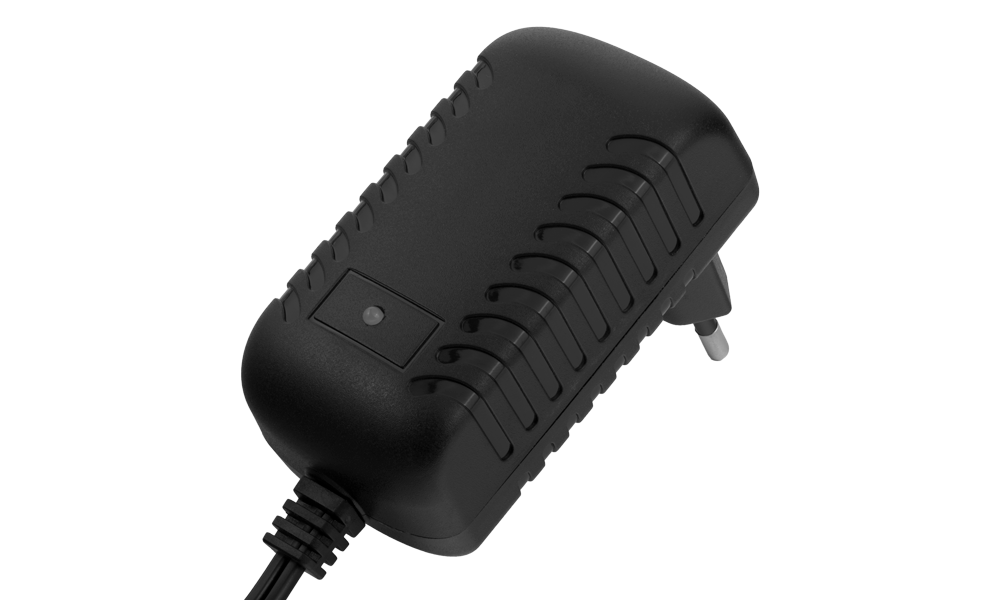

C1 Plus NiMH charger
Introduction
The KAVAN C1 Plus is a mains-powered charger for 4–8-cell NiMH packs. It charges at 1 A and terminates automatically using delta-peak detection. Read the entire manual and Warnings and safety notes before connecting a battery.
Warnings and safety notes
Wrong battery chemistry, cell count, polarity or charge current can cause fire or explosion. Never leave a charging battery unattended.
- This appliance is not intended for use by young children under 15 years or uninformed persons unless adequately supervised by a responsible adult to ensure that they can use the appliance safely.
- Do not leave the charger unattended while charging. If any malfunction occurs, stop the process immediately and refer to the operation manual. A short circuit or overcharging can release corrosive chemicals or cause an explosion or fire.
- Monitor the battery temperature during charging. Slight warmth near the end of charging is normal, but if the battery becomes hot, stop charging and disconnect it immediately. Allow it to cool before reconnecting.
- Do NOT attempt to charge incompatible types of rechargeable batteries or even dry (alkaline, zinc-carbon) batteries. This charger is designed only for charging Nickel-Metal Hydride batteries.
- Never attempt to charge the following types of batteries:
- A battery pack which consists of different types of cells (including different manufacturers)
- Non-rechargeable batteries (Explosion hazard).
- Batteries that require a different charge technique from NiMH.
- A faulty or damaged battery.
- A battery fitted with an integral charge circuit or a protection circuit.
- Batteries installed in a device or which are electrically linked to other components.
- Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers during the charge process.
- Keep the charger well away from dust, dampness, rain, heat, direct sunshine and vibration. Never drop it.
- Do not allow foreign objects into the charger.
- The allowable AC input voltage is 220–240 V/50 Hz; the charger is supplied with the EU-style plug.
- The battery should be put on a firm, level, heat-resistant, non-flammable and nonconductive surface. Never place it on a carpet or similar.
- Keep all the inflammable volatile materials away from the operating area.
- Make sure you know the specifications of the battery to be charged to ensure it meets the requirements of this charger. Otherwise, the battery and charger may be damaged. It can cause a fire or explosion due to overcharging.
- Do not attempt to charge batteries at excessively fast charge currents. Check with your battery manufacturer for the maximum charge rate applicable to your battery.
- Do not disassemble the charger.
- Do not leave the charger connected to the mains socket when not charging.
Technical specifications
| AC input | 220–240 V / 50 Hz; EU plug |
|---|---|
| Battery | 4–8-cell NiMH, Tamiya® or Dean-T® connector |
| Charge termination | Automatic delta-peak detection |
| Charging current | 1 A |
| Dimensions | 83×44×32 mm |
Main section
Operating the charger

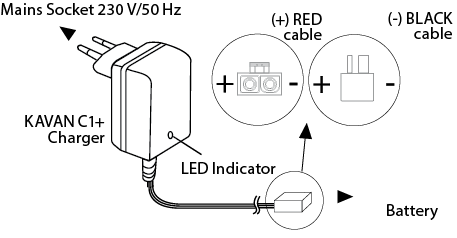

Observe the connector polarity: red is positive (+), black is negative (−).
- Connect your KAVAN C1+ charger to a mains socket (230 V/50 Hz). The LED starts flashing green, indicating the charger is ready to charge.
- Connect the battery (4–8 cell NiMH) to be charged to the KAVAN C1+ charger. The LED will light up RED, indicating that the charging is in progress now.
- Once the RED LED turns GREEN, it indicates the battery has been fully charged.
- Disconnect the battery and unplug the charger from the mains socket.
Appendix
Guarantee
The KAVAN Europe s.r.o. products are covered by a guarantee that fulfils the currently valid legal requirements in your country. If you wish to make a claim under guarantee, please contact the retailer from whom you first purchased the equipment. The guarantee does not cover faults caused by: crashes, improper use, incorrect connection, reversed polarity, improper maintenance, modifications or repairs which were not carried out by the KAVAN Europe s.r.o. or authorised by KAVAN Europe s.r.o., accidental or deliberate damage, defects caused by normal wear and tear, operation outside the Specification. Please be sure to read the appropriate information sheets in the product documentation!
For service, contact the retailer from whom you purchased the product. Use the original packaging if available. Include a dated description of how the product was used and the fault, together with your full address and telephone number.
Incorrect installation, inadequate mounting or cooling, cable strain, reversed polarity and operation beyond the specified limits are not covered. Protect the device from excessive heat, moisture and dust, and do not leave it in direct sunlight for prolonged periods.
Recycling and waste disposal note (European Union)
Electrical equipment marked with the crossed-out waste bin symbol must not be discarded in the domestic waste; it should be disposed of via the appropriate specialised disposal system. In the countries of the EU (European Union) electrical devices must not be discarded via the normal domestic waste system (WEEE - Waste of Electrical and Electronic Equipment, Directive 2012/19/EU). You can take your unwanted equipment to your nearest public collection point or recycling centre, where it will be disposed of in the proper manner at no charge to you. By disposing of your old equipment in a responsible manner you make an important contribution to the safeguarding of the environment.
EU declaration of conformity
Hereby, KAVAN Europe s.r.o. declares that the KAVAN C1+ charger is in compliance with the essential requirements as laid down in the relevant European directives and norms. The full text of the Declaration of Conformity is available at www.kavanrc.com/doc.
