KAVAN Programming card

Introduction​

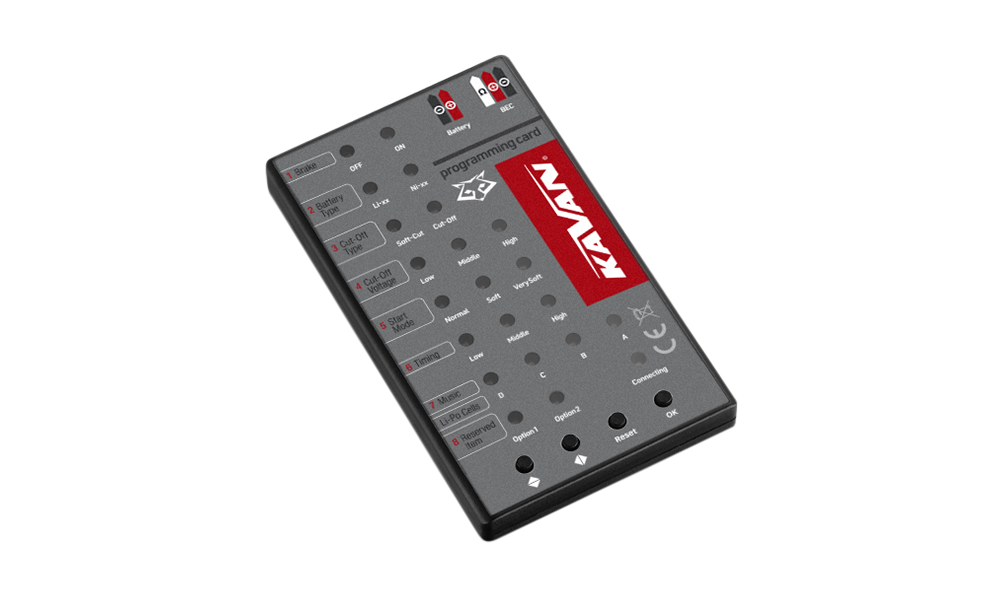

KAVAN ESC programming card is easy to use and convenient to carry. All of the programmable functions are listed on the programming card.

Specification​

ParameterValue
Input voltage4.8–6.0 V DC
Dimensions92×52×6 mm
Weight26 g

Recommended power supply: ESC BEC/SBEC or a receiver battery with 4–5 NiCd/NiMH cells

Front panel​

Buttons​

  • Up/Down ⮝ / ⮟: select the programmable item
  • Left/right ⮜/⮞: select the options of each programmable item
  • RESET: reset to the default factory settings of the ESC
  • OK: send the new settings to your ESC

Main section​

Programmable functions of the KAVAN ESC​

The highlighted values are the default factory settings.

  1. Brake: ON/OFF
    • ON: Sets the propeller to the brake position when the throttle stick is at the minimum position (Recommended for folding props).
    • OFF: Sets the propeller to freewheel when the throttle stick is at the minimum position.
  2. Battery type: LiPo or NiCd/NiMH
  3. Low Voltage Cut-off type: Reduce Power/Hard Cut-off
    • Reduce Power: ESC reduces motor power when the preset Low Voltage Protection Threshold value is reached.
    • Hard Cut-off: ESC instantly cuts motor power off when the preset Low Voltage Protection Threshold value is reached.
  4. Low Voltage Protection Threshold: (Low/Medium/High)
    • For Li-xx packs: the battery cell number is calculated automatically. The Low/Middle/High cut-off voltage for each cell is 2.85/3.15/3.3 V. For example: For a 3S LiPo, when the „Middle“ cut-off threshold is set, the cut-off voltage will be 3.15×3 = 9.45 V.
    • For Ni-xx packs: Low/Middle/High cut-off voltages are 0/50/65 % of the startup voltage (i.e. the initial voltage of the battery pack), and 0 % means the low voltage cut-off function is disabled. For example: For a 6-cell NiMH battery, the fully charged voltage is 1.44×6 = 8.64 V, when the „Middle“ cut-off threshold is set, the cut-off voltage will be: 8.64×50 % = 4.32 V.
  5. Soft Acceleration Startup: Normal/Soft/Very Soft (300 ms / 1.5 s / 3 s)
    • Normal mode is suitable for fixed-wing aircraft. Soft or Very Soft modes are suitable for helicopters. The initial acceleration of the Soft and Very Soft modes is slower, it takes 1.5 seconds for Soft startup or 3 seconds for Very Soft startup from initial throttle advance to full throttle. If the throttle is completely closed (throttle stick moved to bottom position) and opened again (throttle stick moved to top position) within 3 seconds after the first startup, the re-startup will be temporarily changed to normal mode to get rid of the chance of a crash caused by slow throttle response. This special design is suitable for aerobatic flight when quick throttle response is needed.
  6. Timing setup: Low / Middle / High
    • Low (3.75°) – Setting for most 2-pole motors.
    • Middle (15°) – setting for motors with 6 or more poles.
    • High (26.25°) – setting for motors with 12 or more poles, outrunners
    • In most cases, middle or low timing works well for all types of motors. However, for high efficiency, we recommend the Low timing setting for 2-pole motors (generally, in-runners) and middle timing for 6 poles and above (generally all outrunners). For higher speeds, High timing can be set. Some motors require different timing setups therefore we suggest you follow the manufacturer-recommended setup.
    Note

    Run your motor on the ground first after making any changes to your motor timing!

  7. Music/LiPo Cells – not used.
  8. Option – not used.

Wiring sequence​

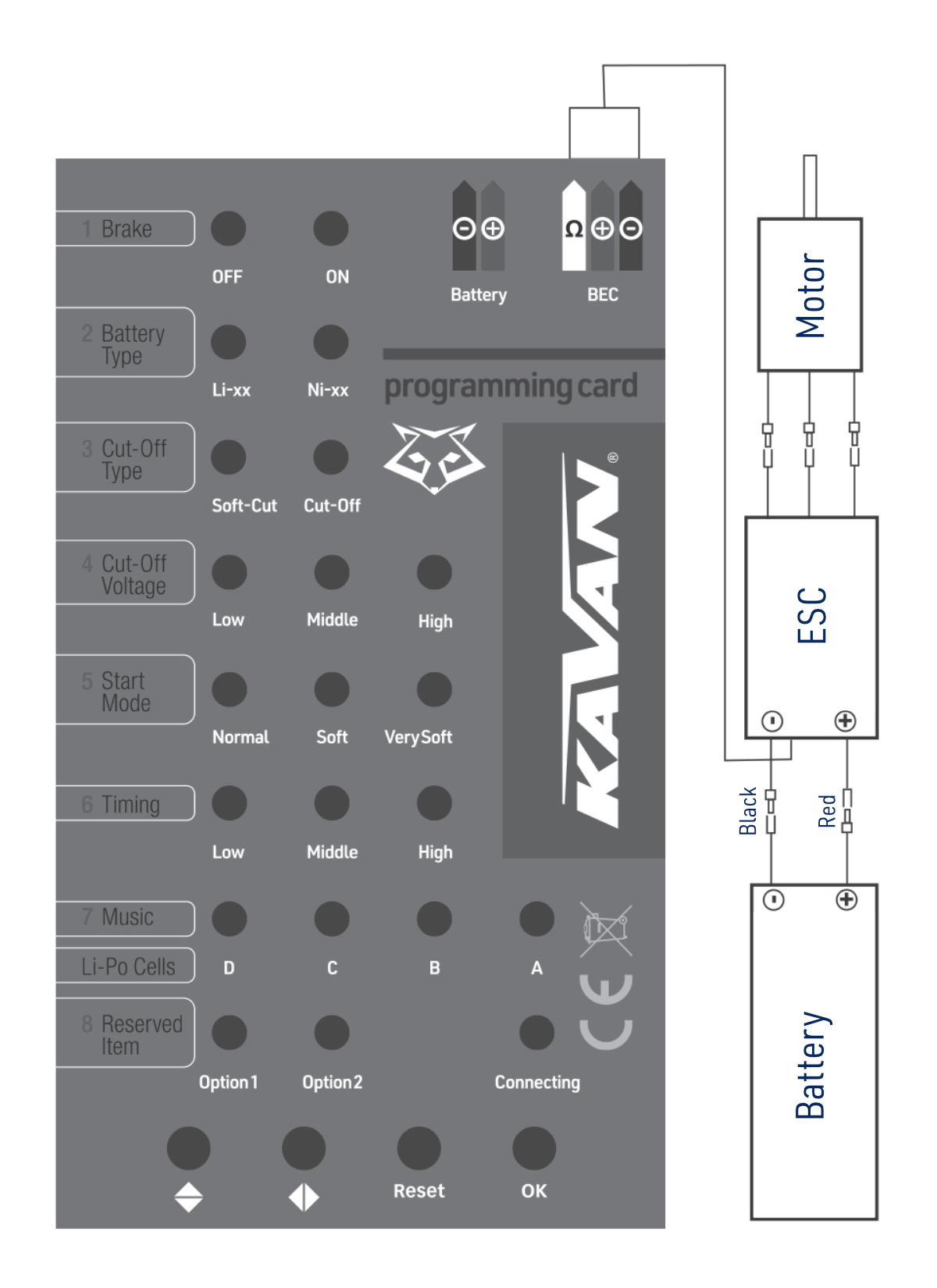

Connections of the KAVAN programming card
Caution

Program the ESC after installing it in the model, with the motor connected. Remove the propeller for safety.

  1. Disconnect the main battery pack from the ESC.
  2. For the KAVAN ESC (with a built-in BEC), please disconnect the Rx cable (trio wires) of the ESC from your receiver, and then connect it to the program card at the top right corner position marked with „BEC“.
  3. Connect the main battery pack to the ESC.
  4. The LEDs on the program card will light to show the current programmable values of the ESC.
Note

The sequence of Step 2 and Step 3 cannot be reversed! Otherwise the program card cannot work properly.

Caution

Don’t use a battery pack with a voltage higher than 6 V to supply the program card!

Operation​

Programming a KAVAN ESC with the transmitter

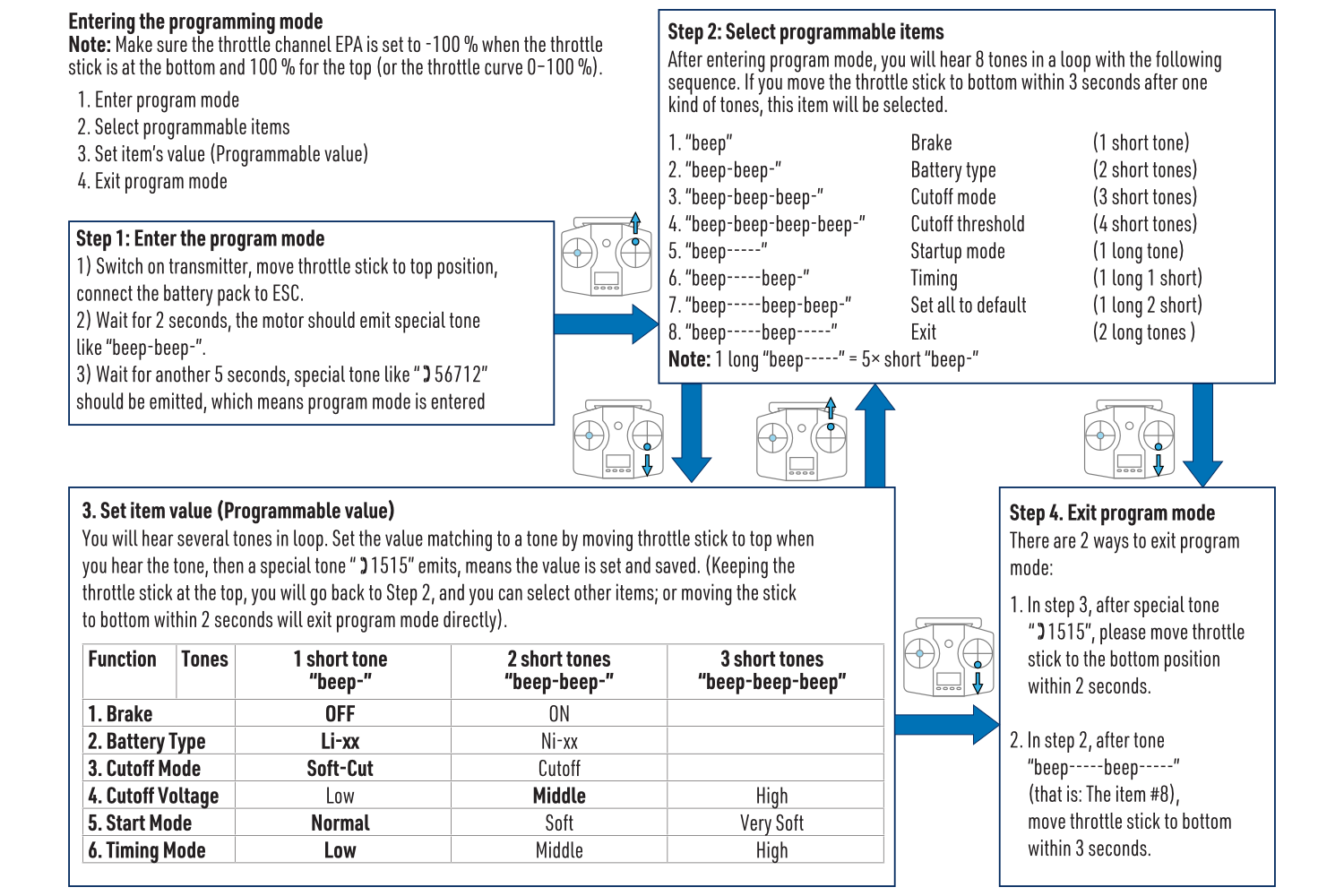

For the alternative transmitter programming method, see (Fig. 2) and the KAVAN ESC manual.

Press the Up/Down ⮝ / ⮟ button to select the programmable item; its LED will blink. Press the Left/right ⮜/⮞ button to select the value indicated by the flashing LED. Press OK to transmit the settings to the ESC. The blue „Connecting“ LED blinks during transfer and stops when the settings have been accepted and stored. To restore the factory defaults, press RESET, then OK.

Appendix​

Safety precautions​

  • Do not install the propeller (fixed wing) or drive pinion (helicopter) on the motor when you test the ESC and motor for the first time to verify the correct settings on your radio. Only install your propeller (plane) or pinion (heli) after you have confirmed that the settings on your radio are correct.
  • Never use ruptured or punctured battery cells.
  • Never short circuit battery or motor terminals.
  • Always use proper insulation material for cable insulation.
  • Always use reliable, polarised cable connectors.
  • Wrong battery polarity will damage the Card and ESC and void the warranty.
  • Use only batteries supported by the card and ESC. Do not exceed either device’s specified supply voltage, and ensure the correct polarity before connecting.
  • Once the battery is connected, handle the model as if the motor could start at any time. Keep fingers, your face and loose clothing away from the propeller. Keep yourself and bystanders out of the plane of rotation and never stand directly in front of rotating parts.
  • Do not immerse the Card under water, do not allow it to get wet while powered up.

Warranty and post-warranty service​

All KAVAN ESC accessories are covered by a 2-year warranty covering all manufacturing defects and faults. When making a claim within the warranty period, please always present a copy of the proof of purchase with the product and provide the service personnel with as detailed and complete information as possible about the defect found, your usage and other information that will facilitate the assessment of the claim and speed up its settlement. Please make your claim at the shop where you purchased the product. If this is not possible, you can directly contact KAVAN Europe s.r.o.:

KAVAN Europe s.r.o. | Doubravice 110, 533 53 Pardubice | Czechia | +420 466 260 133 | info@kavanrc.com

Warranty and limitation of liability​

As the manufacturer of this product, we have no control over your compliance with these instructions when wiring and installing the ESC into your model. Likewise, we have no control over the way you build, operate and maintain the RC set parts. For this reason, KAVAN must disclaim all liability for any loss, damage or financial cost that is caused by the improper use or operation of products imported by us, or that is in any way connected with such activity.

Except as otherwise provided by law, KAVAN’s obligation to pay compensation shall (regardless of the legal arguments asserted) be limited to the purchase price for those KAVAN products that were directly involved in the event that caused the damage. This does not apply if the manufacturer has been judicially obliged to make unlimited compensation on the basis of proven wilful or gross negligence. We warrant that our products are in compliance with current legal provisions. The warranty does not cover failures and defects caused by:

  • Misuse or improper use.
  • Delayed, improper or no maintenance, or maintenance performed by an unauthorised service.
  • Incorrect wiring.
  • Use of accessories not approved or recommended by KAVAN Europe s.r.o.
  • Modifications or repairs not carried out by an authorised KAVAN Europe s.r.o.
  • Inadvertent or deliberate damage.
  • Normal wear and tear.
  • Operation of the equipment outside the operating limits specified in the specification.

KAVAN Europe s.r.o. warrants that this product is free from defects in both material and workmanship at the time of sale. KAVAN Europe s.r.o. also reserves the right to change or modify this warranty without notice. The equipment is subject to continuous improvement and refinement – the manufacturer reserves the right to change the design without notice.

This warranty certificate entitles you to a free warranty repair of the product supplied by KAVAN Europe s.r.o. within a period of 24 months. The warranty does not cover natural wear and tear due to normal use, as this is a product for modelling use, where the individual parts operate under much higher loads than normal toys are subjected to.

The warranty also does not cover any part of the equipment that has been improperly installed, roughly or improperly handled, or damaged in an accident, or any part of the equipment that has been repaired or altered by an unauthorised person (this includes the application of any waterproof sprays/coatings by the user). Like other fine electronics products, do not expose this equipment to high temperatures, low temperatures, moisture, dusty environments, violent mechanical shocks and impacts. Do not leave it in direct sunlight for extended periods of time.

Improper installation includes inadequate mounting, mechanical strain on cables and insufficient cooling.

Please claim warranty repairs from the shop where you purchased the product.

If possible, use the original packaging when returning the product for service. Include a dated description of its use and the fault, together with your full address and telephone number.

Recycling (European Union)​

Electrical equipment bearing the crossed-out bin symbol must not be disposed of in normal household waste. Instead, it must be taken to a specialised collection and recycling facility. In EU (European Union) countries, electrical equipment must not be disposed of in normal household waste (WEEE – Waste of Electrical and Electronic Equipment, Directive 2012/19/EU). You can take unwanted equipment to your nearest collection or recycling centre. The equipment will then be disposed of or recycled safely, free of charge. By handing in your unwanted equipment, you can make an important contribution to protecting the environment.
